Because of the integrated diaphragm sealing device (chemical seal), the stainless steel diaphragm pressure gauge can isolate the measured medium* from the instrument measuring system and avoid it from directly entering the measuring cell of the instrument, and is suitable for measuring the pressure of the fluid medium with strong corrosion, high temperature, high viscosity, easy crystallization, easy solidification or solid floating matter that the spring tube pressure gauge cannot adapt. It is widely used in pressure detection systems in petroleum, chemical, chlor-alkali, dyeing and chemical, chemical fiber, pharmaceutical, food and other industrial sectors.
When the pressure is measured with a stainless steel diaphragm pressure gauge, the measured working medium acts directly on the isolation diaphragm, and the diaphragm produces upward deformation, and the medium pressure is transmitted to the spring tube through the filling liquid in the spring tube, so that the end of the spring tube produces elastic deformation, and the movement gear shaft is driven to rotate with the help of the connecting rod mechanism, so that the pointer indicates the measured pressure value on the dial.
Ordinary seismic pressure gauge YTN-150 0-25MPa 1.6 grade M20*1.5
Thermocouple WRNK-131 K 0-1000°C φ8 L=2500mm
Electromagnetic flowmeter LDG-DN250 split type, PTFE lining, 316L electrode, room temperature, 1.6MPa, conventional flow range, 4-20mA output, RS485 communication, Modbus-RTU protocol, accuracy 0.5%, 220V power supply, IP65, flow rate 0.3~15m/s

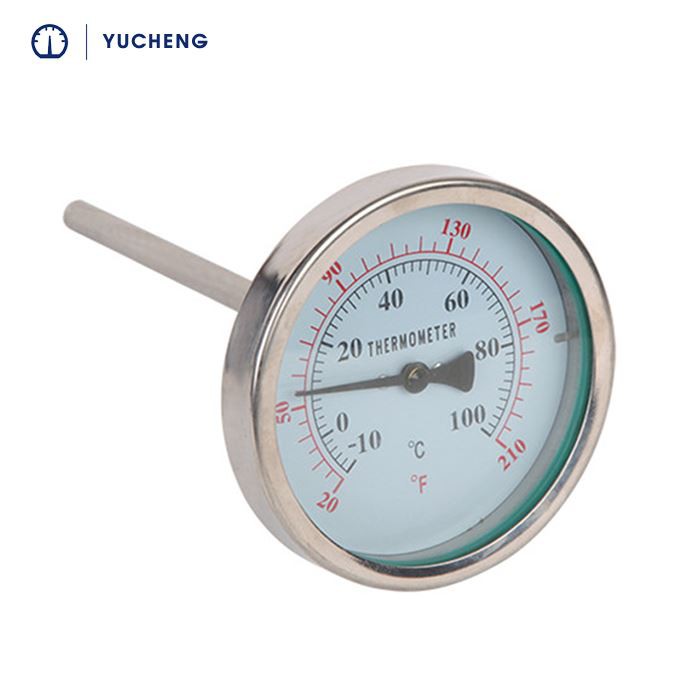

Bimetal thermometer WSS-481 0-200°C φ10 L=255mm M27*2
LCD Flow Totalizer F2000X 160*80mm Input 4-20mA Power Supply AC220V with 20m cable
Bimetal Contact Thermometer "WSSX-481,0-100°C,φ10,Insertion DepthL=160mm,Accuracy Class 1.5,Movable Male Thread M27*2"
Bimetallic Contact Thermometer "WSSX-481,0-100°C,φ10,Insertion DepthL=160mm,Accuracy Class 1.5,Movable Male Thread G3/4"
Armoured copper resistors WZCK-130 CU50 Φ6 L=150 Each piece comes with a copper clamp
Pipe Surface Thermocouple WRNM-102B
Stainless steel seismic pressure gauge YN-60BF 0-2.5MPa radial M14*1.5
Stainless steel seismic pressure gauge YN-60BF 0-0.6MPa radial M14*1.5
Stainless steel diaphragm seismic pressure gauge YN-60BF/ML 0-0.6MPa radial M14*1.5
