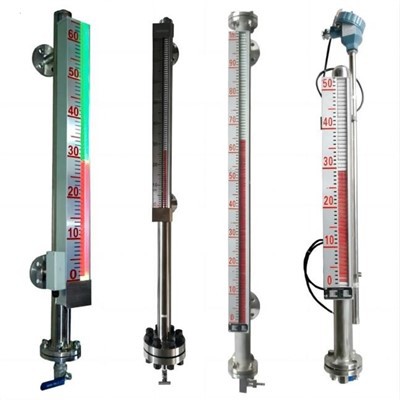

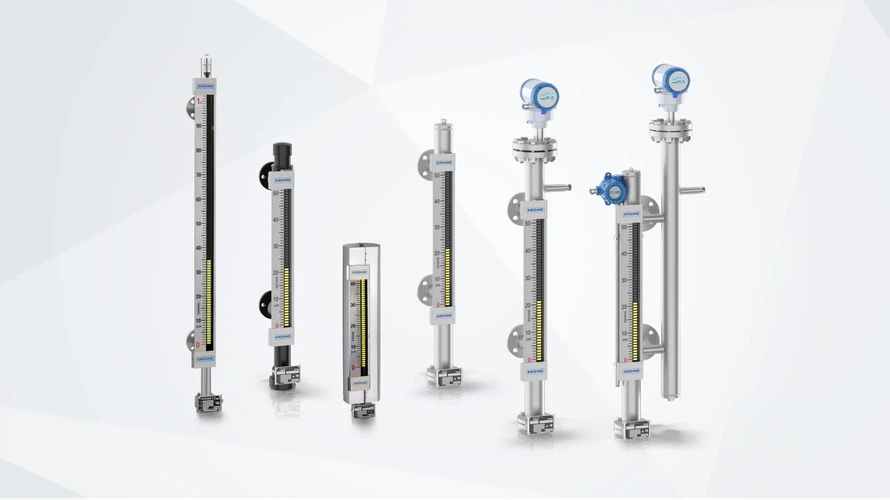

Magnetic Level Meter

What is a magnetic level gauge used for?


A magnetic level gauge is a type of level sensor, i.e., a device used to measure the level of fluids. A magnetic level gauge includes a “floatable” device that can float both in high and low density fluids.

What material is level gauge made of?
These gauges are typically made from stainless steel. In fact, magnetic level gauges can hold up to even the most extreme conditions. These devices will stand strong through system shock, hazardous materials, high-pressure environments, and environments with excessive moisture.

How does the best magnetic gas level indicator work?





The working principle behind a magnetic level indicator is that the measuring instrument shares the same fluid — and therefore, the same level — as the vessel. The level indicator is attached to the vessel and connects directly with the fluid to be measured. Within the chamber is a float with a magnet assembly inside.



What is the most commonly used level sensor?





Some of the more commonly used types of industrial level sensors are float switches, ultrasonic, pressure, and capacitance type sensors. The nature of the fluid, the material of tanks, and the desired accuracy determine the type of level sensor to be used.



Magnetic Level Meter Products Description



First 12 Last 1/2
Company profile


Hangzhou Yucheng Science & Technology Co., Ltd is a professional manufacturer of pressure equipment, our factory was founded in 2005 and specializes in manufacturing pressure gauges, thermometers, transmitters, and related accessories.

All our pressure equipment was widely used in the Oil & Gas refinery, textiles, chemical, food, and beverage industries.

ISO9001:2000 certificated company, to guarantee excellent product quality.

Main clients from Africa, South America, North America, and Asia. and Europe.

Our production capacity: about 1 million sets of various kinds of pressure equipment.

Our location: factory in Ningbo and Hangzhou, office in Hangzhou.

Contact us for any request. we will design and produce the right product according to your request at a competitive price.

Hangzhou Yucheng Science Technology CoLtd

01

High Quality

02

Advanced Equipment

03

Professional Team

04

Custom Service

Dial Adjustment
Dial Adjustment
Oil Filling
Oil Filling
Static Pressure Test
Static Pressure Test
Packing
Packing

What are the different types of level sensors?
►Point Level Measurement Sensors
►Capacitance Level Sensor
►Optical Level Sensor
►Conductivity (Resistance) Level Sensor
►Vibrating (Tuning Fork) Level Sensor
►Float Switch
►Ultrasonic Level Sensor
►Radar Level Sensor



What are the advantages of magnetic level indicator?



Greatly increased visibility. Reduced maintenance. Easier initial installation and addition of transmitters and switches without interrupting the process. Dual-technology redundancy, with the addition of transmitters or switches, for improved safety.

Magnetic Level Meter Products FAQ

Q: How does a magnetic water level sensor work?

A: The level indicator is attached to the vessel and connects directly with the fluid to be measured. Within the chamber is a float with a magnet assembly inside. This float rests on the fluid's surface. As the fluid level rises or falls, so does the float.

Q: What is the most accurate level sensor?

A: Tank level sensors using radar Like ultrasonic sensors, radar sensors are non-contact, which appeals to operators. However, compared to their sound-based predecessors, radar sensors are more accurate and better equipped to withstand interference because of more precise electronics.

Q: What is the standard for magnetic level gauge?

A: In general, Magnetic Level Gauges shall be 304SS/304LSS grade stainless steel, hower, certain service may require a different grade of alloy that is compatible to process. All Materials Use for Pressure Containment Shall Meet Asme / Ansi Standards. Float Chamber Wall Thickness.

Q: How accurate is the level sensor?

A: Generally speaking, water level sensors are quite accurate, with most models boasting an accuracy of +/-1% or better. One of the most common types of water level sensors is the ultrasonic sensor. These sensors use sound waves to measure the distance between the sensor and the surface of the water.

Q: What is the working principle of magnetic level switch?

A: The magnetic level indicator working principle is based on the effects that one magnet has on nearby magnets. The mechanics are simple yet very effective, yielding reliable and repeatable level information for continuous monitoring and recording of fluid levels.

Q: What is the difference between a float switch and a level switch?

A: A float switch is a device that uses a float, which rises and falls with the level of liquid, to activate a switch. The switch can be used to turn a pump on or off, for example. A level switch, on the other hand, uses a probe that is inserted into the liquid to detect the level of the liquid.

Q: What is the maximum level gauge?

A: The OTT Maximum Level Gauge is a cost-effective measuring device that indicates the maximum water level by tidal waves or other level fluctuations over a color marking. It is based on the simple principle of color marking.

Q: How do you read a magnetic level gauge?

A: Reading a magnetic level gauge is quite simple. The rotating roller/balls automatically display the level of the tank. The surface of the liquid is where the white transitions to colored.

Q: How does a magnetic float level sensor work?

A: This float rests on the fluid's surface. As the fluid level rises or falls, so does the float. As the float moves up or down, the magnet assembly rotates a series of bi-color magnetic flags or flaps, changing the visual indicators mounted just outside the chamber from one color to the other.

Q: What is the difference between magnetic and reflex level gauges?

A: Reflex level indicators are for applications that involve high temperature, high pressure and use of corrosive fluids. The colorless fluid used in this apparatus gives better clarity to level indication. Magnetic level indicators are red followers that need magnetic level indicators.

Q: What is the common malfunction of level measuring devices?

A: This can happen due to various factors, such as changes in temperature, pressure, density, viscosity, or composition of the material, or due to wear and tear, damage, or fouling of the sensor. Calibration errors can cause inaccurate readings, false alarms, or poor control of the level.

Q: What are the advantages to using a magnetic level gauge?

A: Magnetic level gauges provide rugged and reliable level indication and do not require power to operate unless they are fitted with additional instrumentation along the tube for transmitting the liquid level.

Q: Where do you use a magnetic level gauge?

A: Suitable for Extreme Temperatures and Pressures Magnetic level gauges are designed to withstand a wide range of temperatures and pressures. They can operate reliably in extreme conditions, making them ideal for applications in industries such as oil and gas, petrochemicals, and power generation.







We're well-known as one of the leading magnetic level meter manufacturers and suppliers in China, featured by cheap products and good service. We warmly welcome you to wholesale custom made magnetic level meter at competitive price from our factory.
