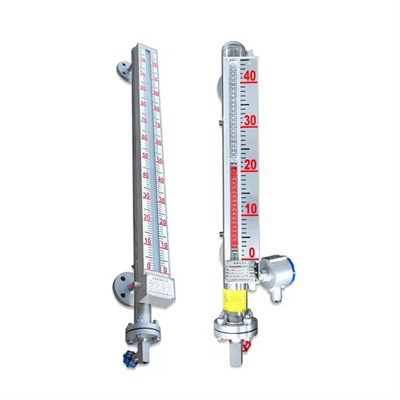

Magnetic Water Tank Level Gauge
magnetic water tank level gauge
magnetic level gauge
MOQ: 20PC
Description

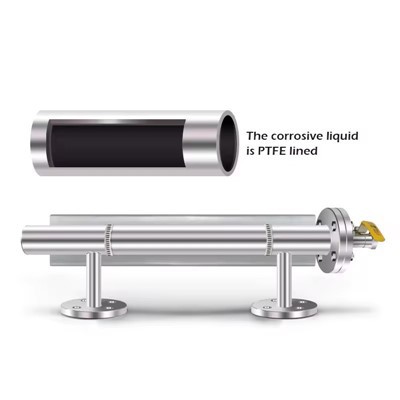

Magnetic water tank level gauge
Yucheng Magnetic Level gauge are a safe, simple and reliable way to measure fluid level inside a tank. These visual gauge indicators are an alternative to sight glasses and provide a non-invasive, low maintenance, cost-effective level solution. They are especially safe for flammable, toxic, corrosive liquids because the fluid never contacts the indicating glass. Should the glass ever break, there is no possibility of leakage.

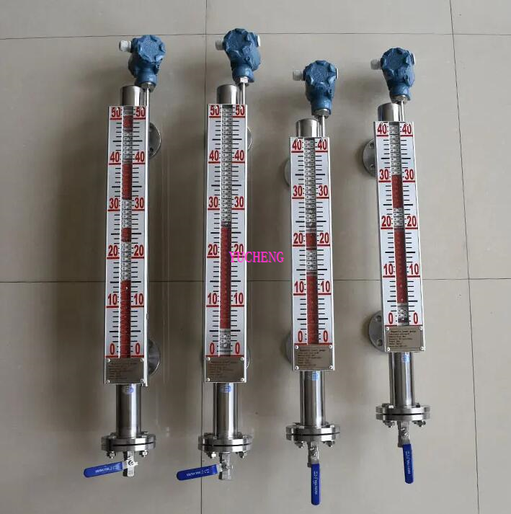

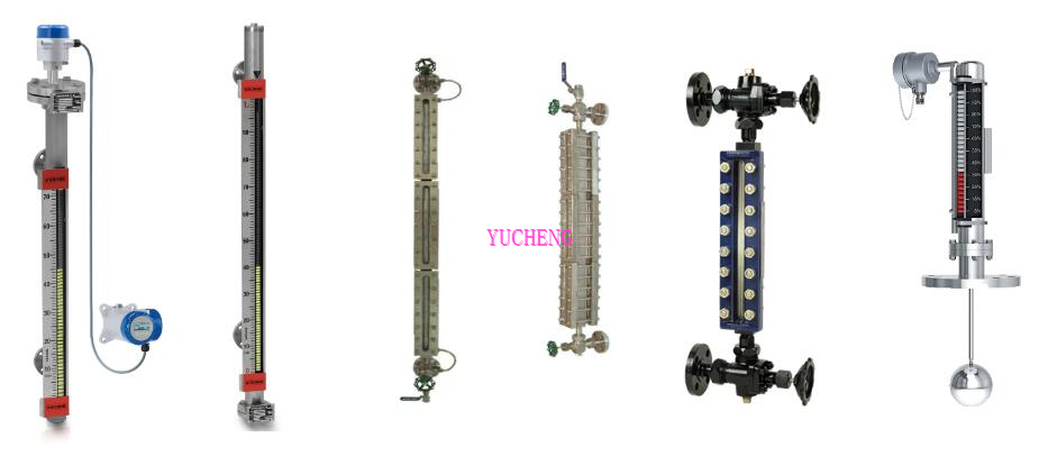

product display

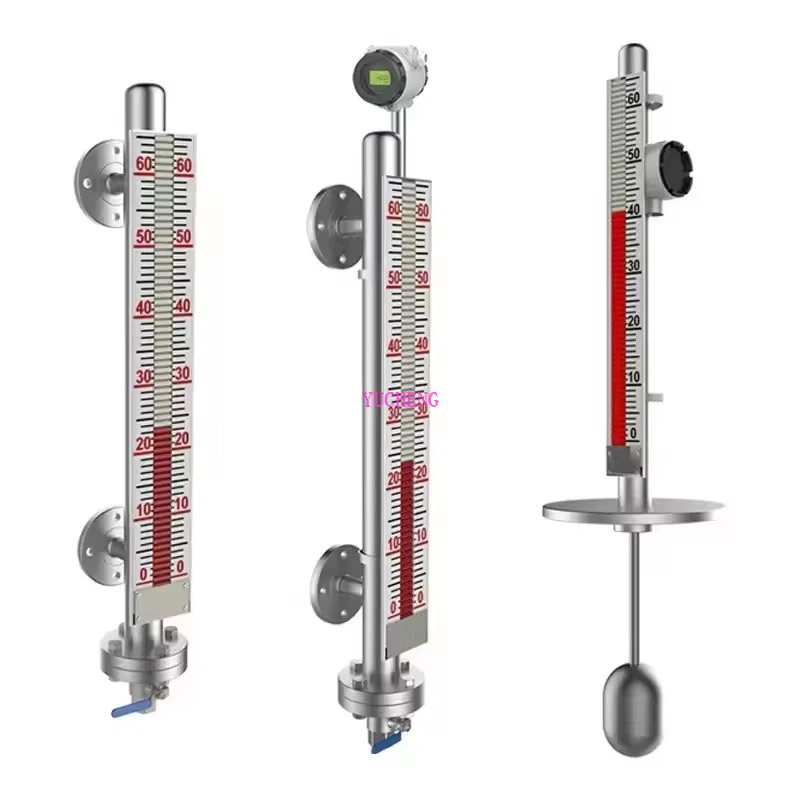

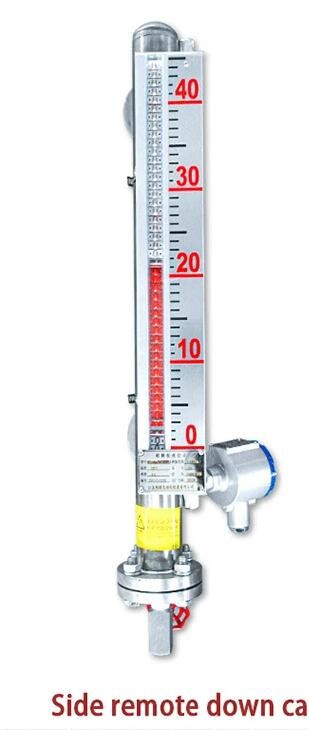

Float type Magnetic Level gauge

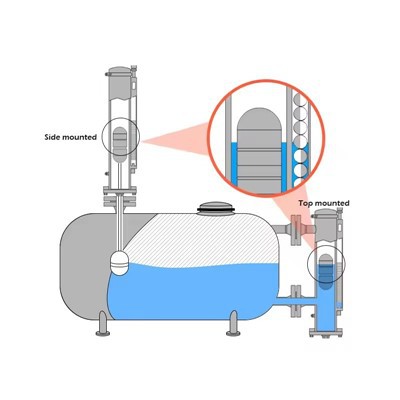

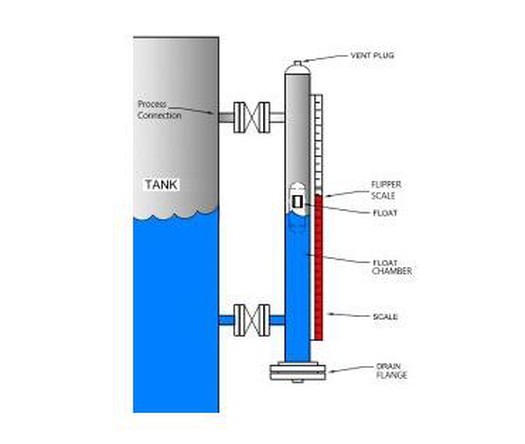

Yucheng Magnetic Level Indicator /Gauge, also referred to as Level Gauges, consist of a chamber, a magnetic float and a flipper type indicator scale mounted to the side of the chamber. Understanding the operation of the Magnetic Level Indicator is quite simple. The fluid in the tank seeks its own level inside the chamber
The magnetic float in the chamber rises and falls with the fluid level. As the Magnetic float rises and falls, it changes the orientation of the flippers on the scale providing a visual level indication. In addition, as the magnetic float rises and falls, it actuates any transmitter or alarm switches that are attached to the side of the gauge.
Details display
Magnetic rollers: ABS, Alluminum, ceramic,
whole process of measurement without blind spots, display eye-catching, intuitive reading, measuirng range.
Float chamber pipe
material : ss304, ss316, pP, PVC, Titanium etc.
working temperature -20~450C,
Pressure: PN1.0-16Mpa.
Junction box : cast aluminum
Ex-proof mark: Exd IIBT4
protection class: IP65/67
communication & signal output: rs485,hart & 4-20mA, 0-10v
Low Pressure <1.6Mpa, 1/2'' ball valve.
high pressure >1.6Mpa,1/2'' needle valve ,
valve material : ss304,ss316,PP, titanium etc.
faq
questions you will have for this level gauge
Q:1.What is a magnetic level gauge for a tank?
What are magnetic level gauges? Magnetic level gauges are externally mounted level instrumentation used on tanks to provide visual indication of the liquid level in the tank. If on-site visual level indication and level control is required, magnetic level gauges are an ideal solution.
Q:2.What material is the float on a magnetic level gauge?
All the magnetic level gauges are fitted with a float. This float is standard in stainless steel, but the float is also available in Titanium or Hastelloy. The float must have enough buoyancy and the magnet must be fitted at the right position inside the float.
Q:3.What is the best way to measure tank level?
One method and the most accurate, is to utilize a differential pressure transducer (DP). This device will accurately measure the liquid level while negating the gas blanket pressure effect.
Q:4.Where do you use a magnetic level gauge?
Magnetic level gauges are designed to withstand a wide range of temperatures and pressures. They can operate reliably in extreme conditions, making them ideal for applications in industries such as oil and gas, petrochemicals, and power generation.
Q:5.How does a tank level gauge work?
The gauge consists of a vertical chamber that fills with the fluid from the tank or vessel. The level of fluid in the chamber matches the fluid level in the tank, and the level is dictated by the interface line between the liquid in the chamber and the vapor in the chamber
Q:6How do you read a magnetic level gauge?
How do you read a magnetic level gauge? Reading a magnetic level gauge is quite simple. The rotating roller/balls automatically display the level of the tank. The surface of the liquid is where the white transitions to colored.

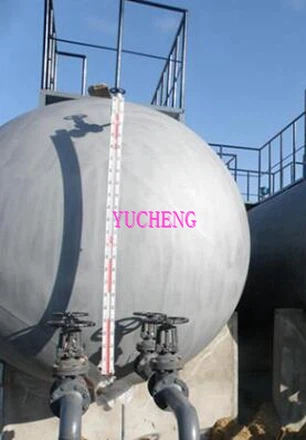

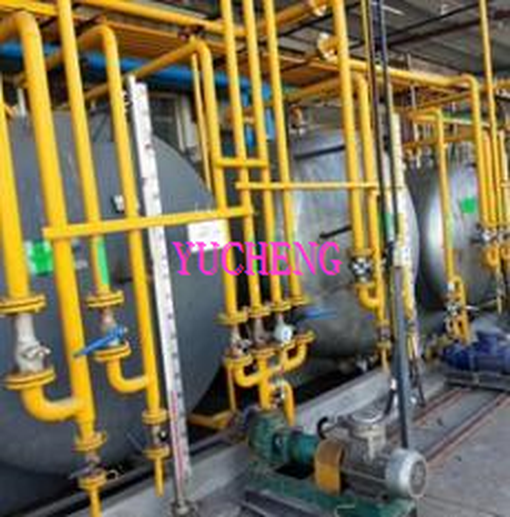

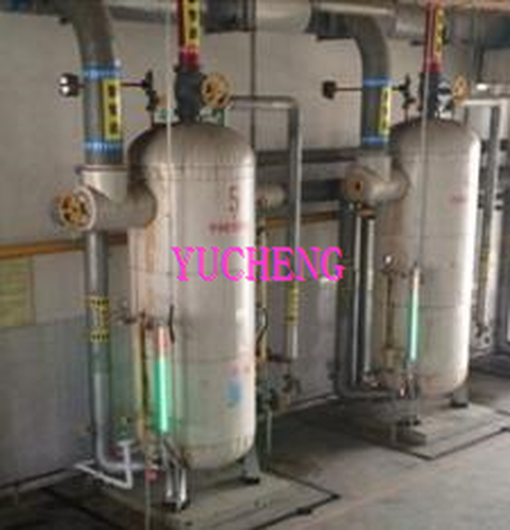

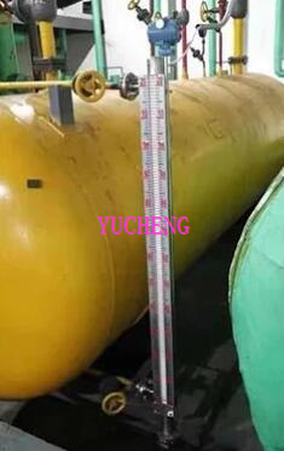

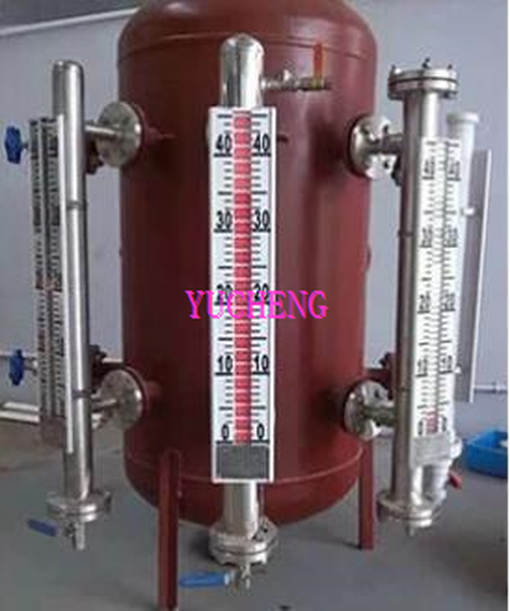

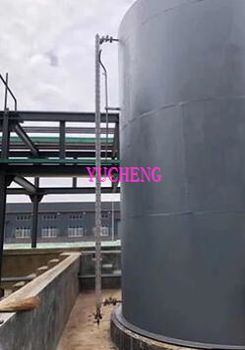

Application at site
Application at site
Application at site
Application at site
Application at site
Application at site
Application at site
Yucheng Magnetic Level Indicators are custom made based on your requirements. The float construction is determined by the process fluid, pressure, temperature and specific gravity of the fluid. Magnetic Level Indicators are generally made of 316SS, but can be made from a variety of other materials including CPVC, Kynar, Hastelloy, Monel or other exotic metals. A variety of mounting style options and process connections are available to meet your needs.
Our Company
production line and inspections , packings
Product range enlarge in 2023
In the spring of 2323,we developed a series of new product lines, transmitter, level meter ,flow meter ,etc

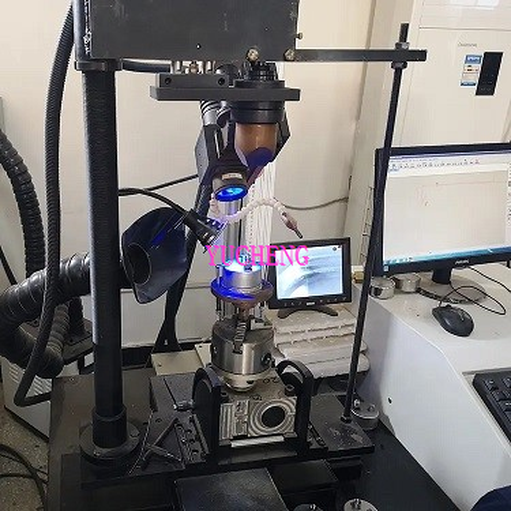

Inspection process
all products were inspected 100% before shipping.

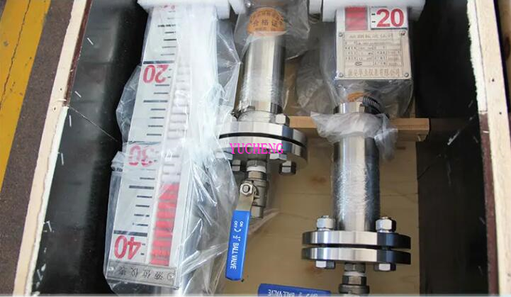

Packing of level meter
Wooden box for
level gauge
transmitters,
Flow meters
Level gauge packing
wooden box
level gauge workshop shortcut

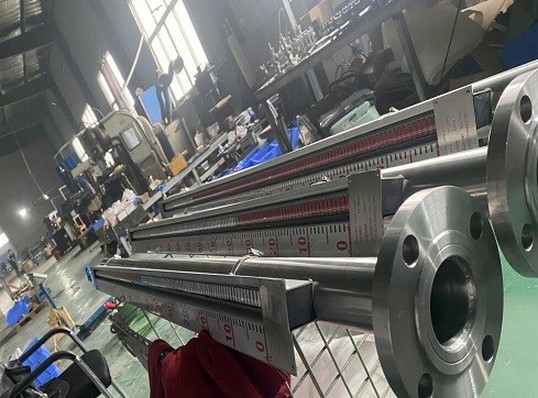

Production workshop
Latest production of level gauge

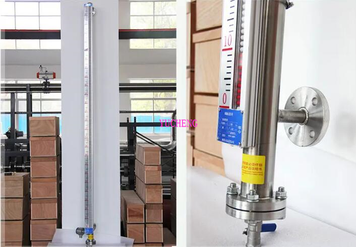

Level gauge ready for shipment
| Most often, the floats and board-level gauge find their application in overground and overhead storage tanks. They are also used in storage tanks of petroleum products, like furnace oil, diesel, lube oil, and so on. Also, it is used in the storage of vegetable oils, molasses, silicates, glucose, and so on. In short, the float and board-level indicators are most widely used in all non-hazardous and non-pressurized tanks. |  |
 |
 |
Customer Testimonial
"We used to have a site gauge on our distillation column to monitor the level of the tank. Due to our high temperature and product inside the tower, the site gauge was always dirty and was useless. Once we installed the Magnetic Float from Yucheng we could actually tell what was in the tower. Our plant operator loves this gauge and would recommend it to anyone that has a tough application. It has truly made his job easier and way more efficient. This gauge has removed all of the guessing out of the operation. The team at Yucheng was extremely knowledgeable and made this entire process go smoothly. Thank You!"
Attaching a side mounted transmitter allows a 4/20mA signal to be sent to a remote location for indication or control function. Yucheng offers 3 different types of transmitters to fit your needs. The Yucheng YC-01 is a lower cost, analog transmitter with no digital display and provides step up level in ½" inch increments. The LT-1 is often the preferred choice when precise measurement and communication are not required. Yucheng series magnetostrictive level transmitters offer highly accurate and precise liquid level measurement. LTM transmitters are available with two-wire loop powered 4-20 mA signal output or bus powered (Fieldbus) with digital output(s).
Additionally, Yucheng Series magnetic alarm switches can be added, external to the float chamber, for alarm or control functions. These switches can easily be moved up or down the float chamber without shutting down or disturbing the process. Yucheng offers a variety of MLS models to fit your needs.
For more information on Magnetic Level gauges, mounting styles, transmitters, MLS alarm switches, ordering information and additional options, please contact us directly . thanks
