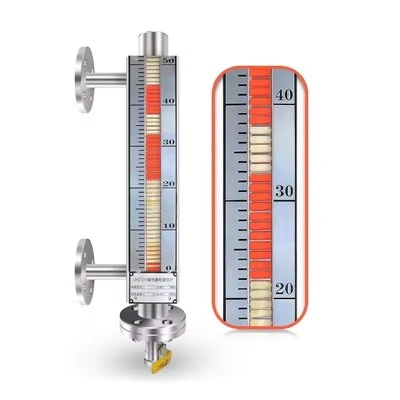

High Accuracy Level Magnetic Gauge

1 pcs sample is acceptable

Trial order with small qty is acceptable

Custom level gauge with small qty is acceptable

It would require recalibration if the liquid density changes.

There is a chance for foreign material build-up on the float.

It cannot be used for liquids containing magnetic particles.

The magnetic level gauge is ideally suited for measuring a liquid interface. Floats are available to meet a variety of specific gravities to suit the liquids being monitored - many manufacturers offer floats suitable for specific gravity ranges of 0.33-2.2.

The 'wet-side' magnet on the float repels the opposing magnet within the 'dry-side' switch mechanism in a strong snap movement, activating the switch. Similarly, when the liquid level drops in a tank the float pivots downwards, repelling the opposing magnet and activating the switch.

Our magnetic level gauges are manufactured with the C to C and Visible Length requested by customers, up to approx 6,500 mm for level gauges having a stainless steel vertical chamber and up to approx 3,500 mm for level gauges having a vertical chamber in synthetic polymers.

It makes it possible to attach a spirit level to a steel structure, which greatly facilitates measuring work when erecting fences or in welding workshops. The magnetic spirit level is also useful in plumbing and locksmith works.
