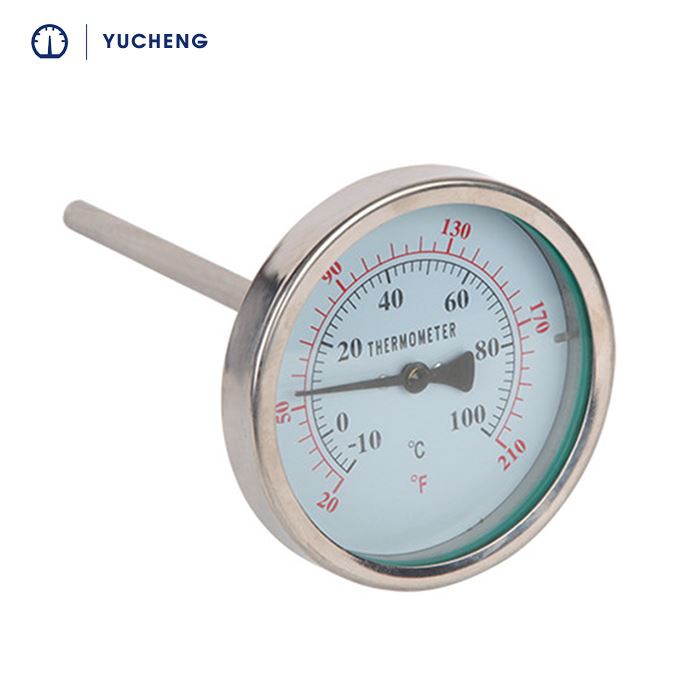

Industrial Use Bimetal Thermometer

Industrial use Bimetal thermometer

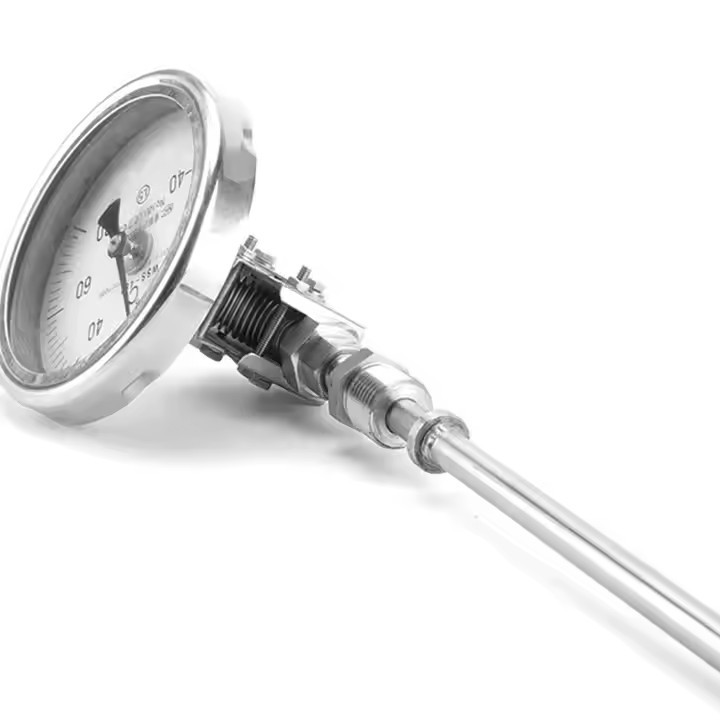

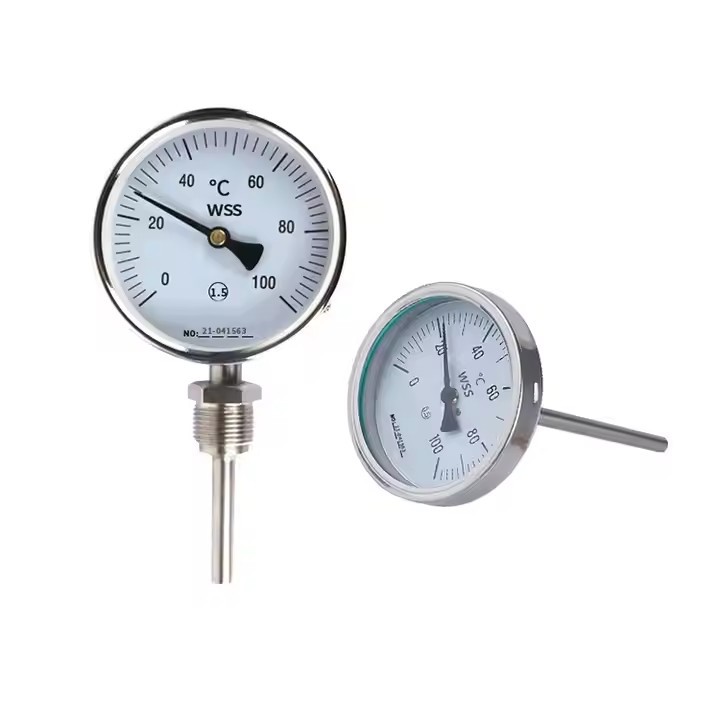

Bimetal thermometer

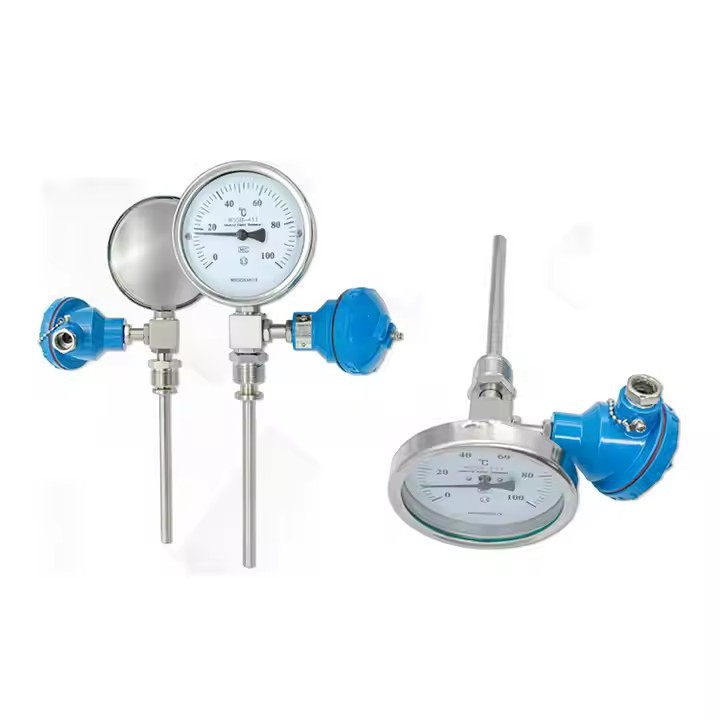

Bimetal (electric contact) thermometers are suitable for medium and low temperature field detection, can directly measure liquid, gas and steam temperature, with no mercury damage, clear indication, strong, shock resistance. All the instruments are made of stainless steel, which has good waterproof and anti-corrosion properties. Electric contact bimetal thermometer is a kind of instrument suitable for low temperature field detection and automatic control, which can directly measure the temperature of the gas, and automatically control or signal the temperature change of the measured medium. The series is widely used in petroleum, chemical, metallurgy, textile, food and other industries.

Technical parameter
~ Accuracy level: ±1.5%
~ Time constant: not more than 40s
~ Protection pipe pressure: 6.3MPa
~ vInstrument implementation standard: JB/T8803-2015

Packing&Delivery

Packing: one unit per paper box.

Packing type: Polyster bag +paper box, carton, pallet.

Carton weight: 20-24kg

Lead time: 7-29days

Warranty : 1 year

Port: Ningbo or Shanghai

Product descriptions:

Nominal diameter: Φ60mm, Φ100mm, Φ150mm

Accuracy: 1.5%

Thread: M16×1.5, M27×2, G1/2, PT1/2

Measuring range: -20~+80ºC, 0~100ºC, 0~150ºC, 0~200ºC, 0~300ºC, 0~400ºC, 0~500ºC

Case material: stainless steel SUS304, black steel

chrome plated Thermal bulb : stainless steel

Thermal bulb dia: Φ6mm,Φ9mm

Connection material: carbon steel or stainless steel SUS 304

Window: glass

IP code: IP65

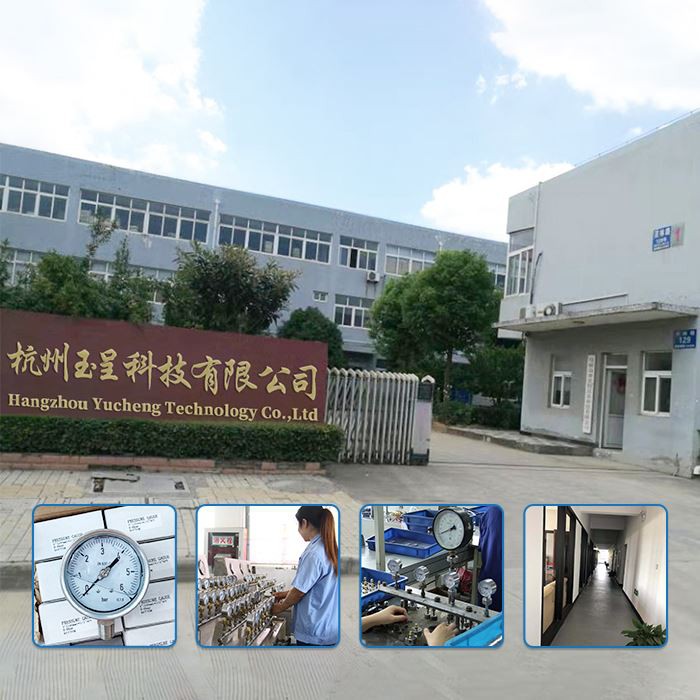

About us:

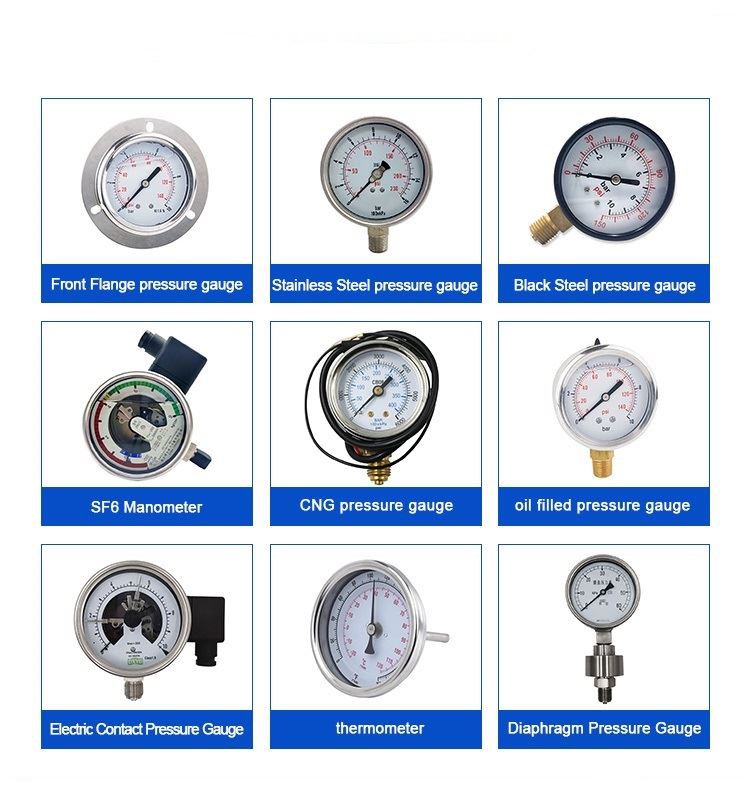

More products:

Certificates:

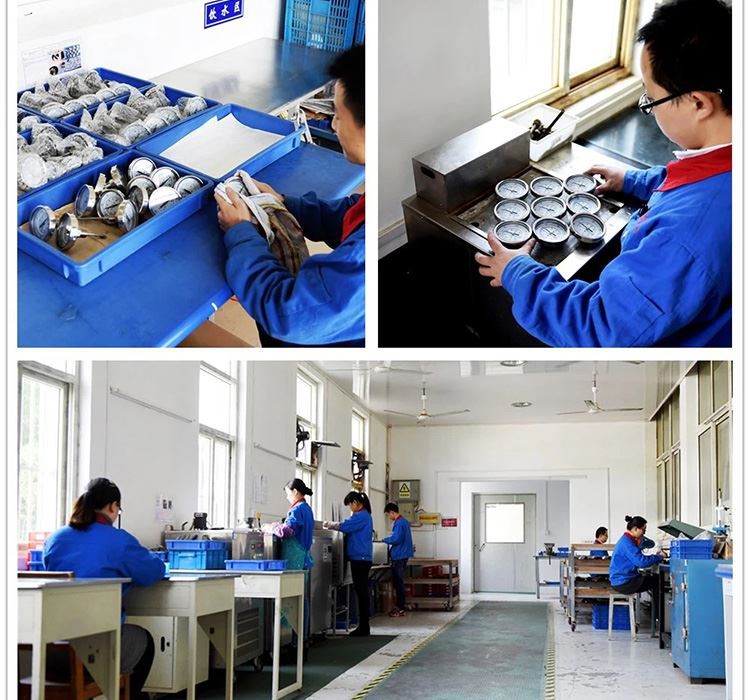

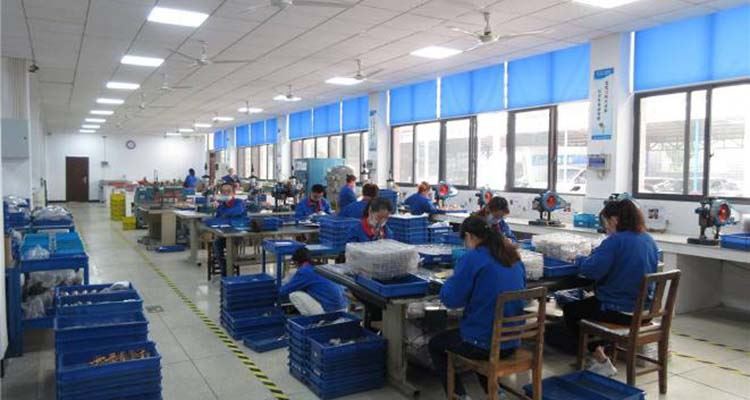

Production and Inspections:

Packing and shipping:

FAQ:

1. Can I get samples?
Yes, certainly. We will provide the existing samples for free, Sample fee is refundable when you make an order from us.
We usually send samples by FEDEX, UPS, TNT or DHL. If you have carrier account, it will be convenient for both of us. If you don't have a relevant account, we will immediately create a link on alibaba and send you at the meantime, what you need to do is just make a purchase.



2. How to pay?

T/T, L/C , D/A, D/P, Western Union , MoneyGram, Paypal, Others.

3. How long is the sample lead time?
We could arrange the existing samples express delivery immediately, it will only takes 3-5 days into your hand. For any special samples requirement, we will contact you first, just wanna make everything in your expectation.

4. Can I customize my logo or any redesign the products?
Yes, of course. The OEM is available. Multi-color available as well. We still have our own design team, who have 3 years design experience. We will do the creation in your requirement and promise to give you an impressive.

5. What are the certifications do you have
As showed in the section of company information, we have CE, SGS certifications. As you can see, our company has a strong competitives and great qualified in our business area. We aim to provide the best quality and services to all global clients.
