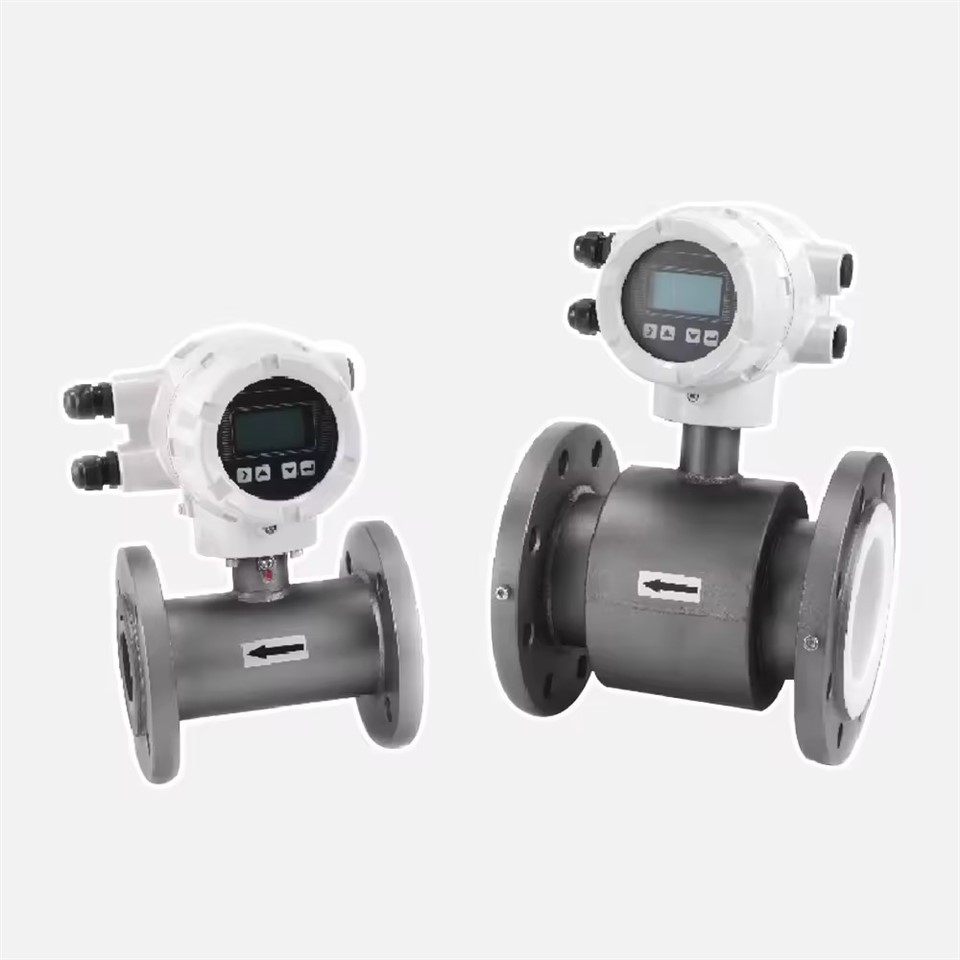

High Quality 4-20mA DN300 Electromagnetic Flow Meter
Variable Area Water Flowmeters, Variable Area Oil Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters
Description
High quality 4-20mA DN300 Electromagnetic flow meter
 |
 |
Electromagnetic flowmeter is used to measure the electromagnetic flow of conductive liquid,solid-;liquid two-phase body and other fluids in a wide range of working conditions.
YUCHENG electromagnetic flowmeter Variety of power supply methods 220VAC/ 24VDC/battery and signal output using RS485 serial communication interface , and support MODBUS/RTU protocol, GPRS and other way of communications as well as accumulative pulse output.
product display
Backlight LCD display
English menu
display instaneous and accumulative flow vale
Explosion proof housing . (CT4 , CT6 optional)
Details display
Modular design,
Easy for after sale service
Lining material:
Chloroprene rubber (CR)
Silicone fluorocarbon (FVMQ)
polytetrafluoroethylene(PTFE)
etc
body and flange
carbon steel
ss304
ss316 optional
Electrode:
316L
Hastelloy b (HB)
hastelloy C (HC)
Titanium (Ti)
etc
Application of the electrode material
| sus316L | applicable to industrial /municipal water , wastewater and low corrosive mediums. widely used in petroleum, chemical industries. |
| Hastelloy B |
strong resistance to hydrochloric acids below the boiling point. resist against oxidable acids ,alkali and non -oxidable salts, for instance, vitriol ,phosphate ,hydrofluoric acids, and organic acids. |
|
Hastelloy C
|
Exceptional resistance to strong solutions of oxidizing salts and acids For example , Fe *** , Cu ++ ,Nitric acids, mixed acids. |
|
Titanium
|
Titanium can withstand corrosive mediums such as seawater , chloride salt solutions, hypochlorite salts, oxidable acids, organic acids, and alkali. Not resistant to high purity reducing acids such as sulphuric acids, hydrofluoric acids. |
|
Tantalum
|
High resistant to corrosive mediums. Applicable to all chemical mediums except hydrofluoric acids. oleum and Alkali. |
|
Platinum-iridium
|
Applicable to all chemical mediums except for ammonium salts and Fortis. |
Our products range: 1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc 2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc. 3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc. 4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer,Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc. 5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc. 6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc.
Our Company
production line and inspections , packings
Transmitter can be commanded to supply a specified test current between 4.0 and 20.0 mA.
|
Transmitter can be commanded to supply a specified test frequency between 0.1 and 5000 Hz |
24Vdc pull up open collector or galvanically isolated open collector (opt.)
Adjustable between 0.0 and 9.9%Qmax. Below selected value, output is driven to the zero flow rate signal level.
|
0-100% RH to 150 °F (65 °C), not condensing. |
Adjustable between 0.1 and 99 seconds.
 |
 |
FAQ:
A: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
A: We can send goods by DHL, TNT, UPS, SF, EMS for freight prepaid, also canuse your own courier account to do the freight collect, just for your convenience.
