4-20mA Output Rota Meter Flow Meter

metal rota meter flowmeter
material:ss304 or ss316
power supply : 24vDC
Pressure : 1.6Mpa
size:DN15-150MM .

Send Inquiry

Description

Products Description

Metal tube rota meter flowmeter 4-20mA output signal

The popular high-precision hydrogen gas flow meter rota meter measures steam gases and liquids

Features:

Sturdy and reliable, can withstand high temperature, high pressure, strong corrosion resistance, long service life.

The mechanical pointer indicates the instantaneous flow rate on site, and the LCD liquid crystal displays the instantaneous and cumulative flow rate, and can also output pulses and output alarms.

It has functions of data recovery, data backup, power failure protection and error self-diagnosis.

HART indicator, two-wire 24VDC power supply, 4-20mA standard current signal output superimposed HART protocol.Connect with the PC serial port, through the Windows program, realize the on-site calibration of the instrument.

There are various installation forms such as vertical, horizontal, top entry and bottom exit, bottom entry and side exit, side entry and side exit, flange or threaded connection.

There are many types, including local type, remote transmission type, jacket type, explosion-proof, anti-corrosion and other forms, which are suitable for different occasions.

Rota meter flowmeter

rota meter

ss316 rota meter flowmeter

Parameters

Range	Water (20℃) (01~200000) L/h Air (20,0.1013MPa) (0.03~3000) m³/h
Range ratio	Standard 10:1 Optional 20:1
Accuracy	Standard: 1.5% Optional:1% Gas: 1.5%
Pressure	standard：DN15~DN50≤4.0MPa DN80~DN200≤1.6MPa Optioanl: DN15~DN50≤32MPa DN80~DN200≤16MPa
Connection	Flange,Clamp,Thread, Sanity thread
Medium temperature	Standard：-20℃~120℃ PTFE 0℃~80℃ High temp：120℃~450℃ low temp： -80℃~-20℃
Environment temperature	Remote type: -40℃~85℃ Pointer type/local alarm type -40℃~100℃
Power supply	Standard type: 24VDC two-wire system (4-20) mA (12VDC~32VDC) Alarm type: 24VDC multi-wire system (4-20) mA (12VDC~32VDC) AC type: (100~240) VAC 50Hz~60Hz Battery type: 3.6V@9AH lithium battery
Load resistance	RLmax: 600Ω
Alarm Output	Upper and lower limit instantaneous flow alarm Local alarm type: upper limit, lower limit or upper and lower limit instantaneous flow alarm (Contact capacity 1A@30VDC) Upper limit and lower limit alarm hold range is a maximum of 60% of range, and the minimum interval between upper and lower limit alarms is 10% of range
Pulse output	Cumulative pulse output is output of optocoupler signal isolation Darlington tube (internal 24VDC power supply, maximum current 8mA)
Ingress protection	IP65

Packing details

Single box per set

sticks on box

polyster bag inside

outside packing

Rota meter adopts variable area measuring theory, which is applicable for measuring liquid and gases and steam, it is all-metal construction, it has local indication, remotely transfer, anti-corrosion type, high-pressure type, explosion-proof, etc. It has 0-10mA, 4-20mAstandard analog signal output and local indication, accumulation, digital communication, field modification and measure parameters, different power supply function, it is widely applicable in petrol, chemical, power supply, pharmacy, food, water treatment industry etc.

Details of this Rota Meter flowmeter

Multiple connection ,flange, clamp , thread,sanitary thread, four connection methods are available for installation options.

All metal structure ,304/316/316 material optional , robust structurestable performance.

Two dials design , Dual-line LCD screen + pointer display the instantaneous and accumulated flow clearly.

Production and Inspections

rota meter a6

Structures

Structure

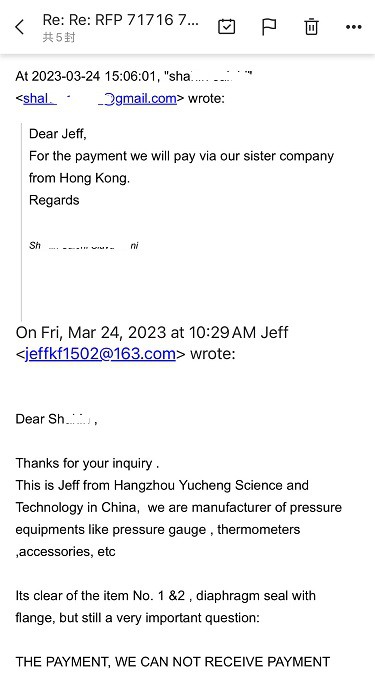

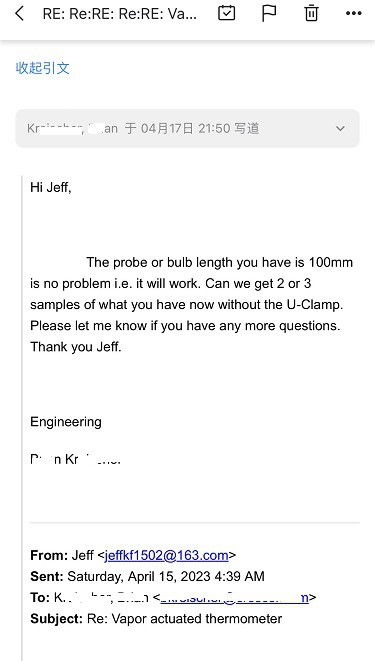

Client Communications

Product details check

Sample check

Payment check

Market share

Market	Revenue(Previous Year)	Total Revenue (%)
North America	Confidential	40
South America	Confidential	12
Eastern Europe	Confidential	3
Southeast Asia	Confidential	1
Africa	Confidential	5
Oceania	Confidential	1
Mid East	Confidential	2
Eastern Asia	Confidential	2
Western Europe	Confidential	3
Central America	Confidential	2
Northern Europe	Confidential	3
Southern Europe	Confidential	5
South Asia	Confidential	4
Domestic Market	Confidential	17

FAQ

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

Q4: What's your payment terms ?

A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

Q5: How long is your production lead time?

A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q6: When can I get the quotation ?

A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
