Intelligent Cement Powder Radar Level Meter
Intelligent powder radar level meter
Accuracy 1.0% radar level meter
24vDC power supply radar level meter
output: 4-20mA /pulse /RS485/HART
Description
Intelligent cement powder Radar Level Meter
BASIC INFORMATION:
| Product name: | Intelligent cement powder Radar Level Meter |
| output : | HART/RS485/ModBus |
| Measuring range | 0.3m~120m |
 |
 |
YCRD80G051.Frequency modulation radar level transmitter ,radar level sensor
2.Stable performance, simple installation and high precision.
3.Widely used in metallurgy, coal, cement, petrochemical industry.
|
|
|
|
Measurement medium ： |
Solids, storage containers, process containers or strong dust situations |
|
Measurement range： |
0.3m～120m |
|
Process connect ： |
flange≥DN80 |
|
Process temperature： |
-40～250℃ |
|
Process pressure： |
-0.1～0.3MPa |
|
Antenna size： |
70mm lens antenna+Universal ring purge |
|
Antenna material： |
PTFE |
|
Accuracy： |
±5mm |
|
Level of protection： |
IP67 |
|
Center frequency： |
80GHz |
|
Angle： |
3° |
|
Power supply： |
Two-wire/DC24V |
|
Outer shell： |
aluminum/plastic/stainless steel |
|
Signal putout： |
Two-wire/4…20mA/HART |
INSTALLATION
Radar level meter installation guide
The selection of tank diameter of 1/6 or 1/4 for installation.
avoid strong vibration installation environment
keep enough space

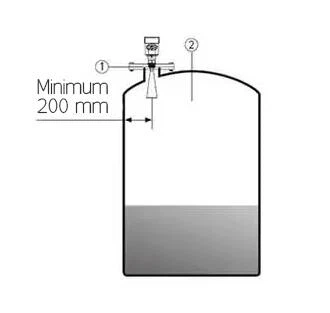

INSTALLATION POSITION:
Distance from tank to installation position keeps at least 200mm. this min space guarantee there's no obstacle in the radar emission angle.
INSTALLATION OF RADAR LEVEL METER
Measurement of the head antenna with material surface vertically
material surface uneven heap of angle, recommend to use the universal angle flange type ,flange angle adjustable to meet the test request.
Installation of radar level meter
Antenna need to reach to the tank front /top at least 10mm .
Measurement medium ：Solids, storage containers, process containers or strong dust situations.
measurement range can reach up to 100 meters. Antenna is optimized further processing,
the new fast microprocessors have higher speed and efficiency can be done signal
analysis, the instrumentation can be used for reactor, solid silo and very complex
measurement environment.
Workshop :
 |
 |

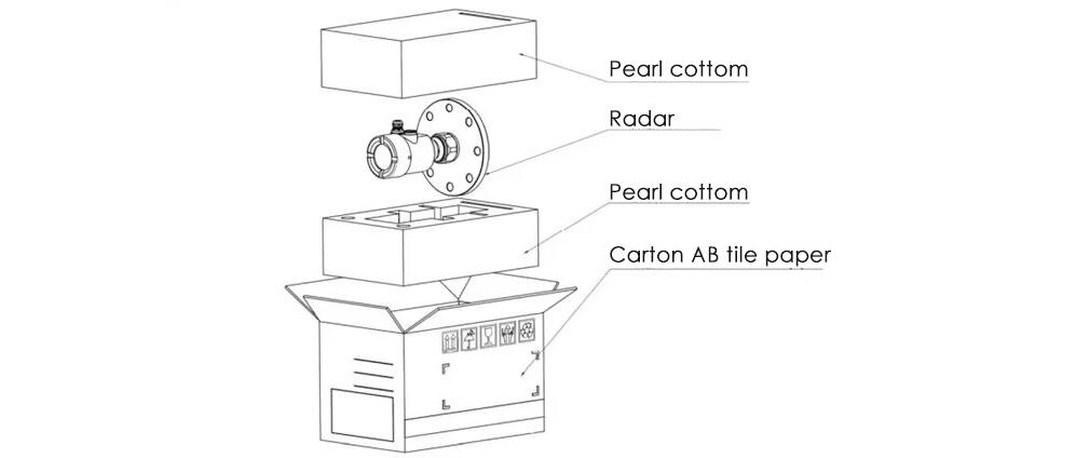

Packing :
FAQ:
1. Q: Can I get a sample or place a sample order ?
A: Yes , 1 set sample is available for quality check , we accept 1 pc sample order.
2. Q: How long is your production time ?
A: 3-5 working days for smaller order, 2-3 weeks for large order. check separately.
3. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
4. Q: Do you provide customized products?
A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.
5. Q: What is your MOQ?
A: We have no MOQ limit, small quantity order is acceptable.
6. Q: What kind of certificates do you have ?
A: ISO9001 quality management, CE ,Explosion proof certificate , there will be quality inspection records /certificates before shipping .
