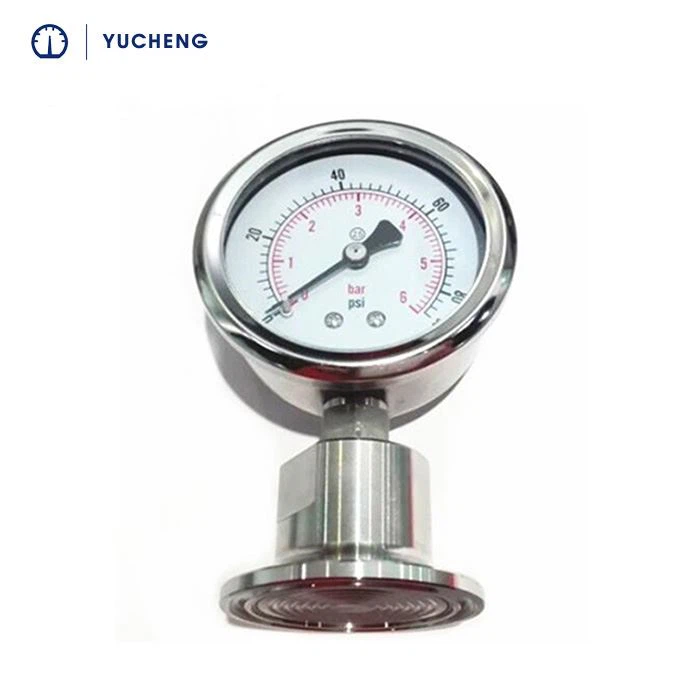

Welded SS Diaphragm Seal Pressure Gauge
All-welded gauge and seal offers customers a lower cost alternative to an individual gauge and diaphragm seal with the added advantage of a reduction in potential leaks. The wetted parts are 316L stainless steel. The process connection is a ½ NPT male bottom mount.
Description
Products Description
All welded ss diaphragm seal pressure gauge
Packing &Delivery:
Packing: 1 unit per box. diaphram seal assembled or separated as client's request.
Packing type: polyster bag +paper box, carton box, pallet.
Carton size; 35x35x30cm
Carton weight: 20-25kg
Lead time: 7-35 days
Logo: can be customized.
Port: Ningbo or Shanghai
Warranty: 1 year
Product descriptions:
Accuracy Class (according to EN837-1) 1.6
Measuring ranges :0 … 25mbar to 0 … 1000mbar
and all corresponding vacuum and compound ranges with overpressure protection
Application area
Steady: full scale value
Dynamic load: 0.9 X full scale value
Short term: 1.3 X fully scale value
Operating temperature range
Ambient: -20 …. +60ºC
Medium: +60ºC maximum
Temperature performance
When the temperature of the measuring system deviates from the reference temperature (+20ºC): max.
±0.6%/10k of the span
Degree of protection
IP32 (EN 60529)
SS diaphragm seal pressure gauge
Diaphragm seal pressure gauge
| Normal Size: | 2.5"(63mm),4"(100mm),6"(150mm) |
| Pressure Range: | -1Bar(-30"Hg)-0-1000Bar(15000Psi) |
| Accuracy: | ±1%,±1.6% |
| Operating temperature: | -40°C to +60°C |
| Case: | Stainless steel |
| Bezel: | Stainless steel |
| Bourdon tube: | Copper alloy or Stainless steel |
| <100Bar: C-Type | |
| ≥100Bar: Helical Type | |
| Connection: | Brass or Stainless steel |
| Movement: | Brass or Stainless steel |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Polycarbonate or Glass |
| Thread: | 1/8",1/4", 3/8",1/2"; |
| PT(BSPT,ZG),BSP(G,PF),NPT etc. | |
| Liquid: | Glycerin or Silicone |
| Gaskets Filling cap: | Nitrile or Silica gel |
| Diaphragm | All SS 316L, PTFE |
Packing details
Single box per set
sticks on box
polyster bag inside
outside packing
About us
We offer a wide range of pressure gauges, transmitters, switches, and other pressure instruments for various applications such as oil and gas, chemical processing, power generation
Our company specializes in the production and development of pressure instruments and gauges for industrial and commercial use
Our pressure instrumentation company is committed to providing high-quality products and services to our customers around the world.
Production and Inspections
Client Communications
Product details check
Sample check
Payment check
Market share
| Market | Revenue(Previous Year) | Total Revenue (%) |
| North America | Confidential | 40 |
| South America | Confidential | 12 |
| Eastern Europe | Confidential | 3 |
| Southeast Asia | Confidential | 1 |
| Africa | Confidential | 5 |
| Oceania | Confidential | 1 |
| Mid East | Confidential | 2 |
| Eastern Asia | Confidential | 2 |
| Western Europe | Confidential | 3 |
| Central America | Confidential | 2 |
| Northern Europe | Confidential | 3 |
| Southern Europe | Confidential | 5 |
| South Asia | Confidential | 4 |
| Domestic Market | Confidential | 17 |
FAQ
Q:Can you supply the OEM services?
A:No problem.
Q:Are you able to develop customized solutions for non-standard applications?
A:Yes, we can. We have a professional R&D team.
Q:Do you have technical drawings or data sheets of your instruments?
A:Yes, we can supply upon customer's request, please contact with the sales.
Q:What about the MOQ?
A:The minimum order amount is $1000USD. Small order can be negotiation.
Q:How about the delivery time?
A:The delivery time is 7-45days depends on the products type and quantity.
Q:Do you check the products before shipment?
A:Our products all are 100% inspection before shipment.
Q:What is the warranty policy?
A: 1Year warranty.
