Electric Contact Pressure Gauge Meter
high-precision, ultra-rugged, intrinsically safe, differential pressure gauge with 0.1% of reading accuracy, capable of continuous vacuum measurement.
Description
electric contact pressure gauge meter
Packing & Delivery:
Packing: 1 unit per box. polyster bag + paper box, carton. pallet.
Lead time: 10-35 days
Warranty: 1 year
Port: Ningbo or Shanghai
Product descriptions:
Size: 4”(100mm)
Wire type: wiring cable, terminal block, junction box
Dial: white aluminum with markings and graduations
Window: polycarbonate
Pointer: black finished aluminum
Ring: 304 stainless steel
Case: 304 stainless steel
Movement: 304 stainless steel
Socket: 316 stainless steel
Bourdon Tube: 316L tube
Connection: 3/8", 1/2" PT, NPT, BSP thread
Mounting: bottom or lower back mount, optional flange
Accuracy: +/-1.5% of full scale
Operating Temperature Limit: -20 ~ 200°C ( -4 ~ 400°F )
Humidity: below 85%
Voltage: -220V~380V, 30VA
Dielectric strength: 2000V, 50Hz (for circuit inside)
Contacts: Single, double
About us:
Certificates:

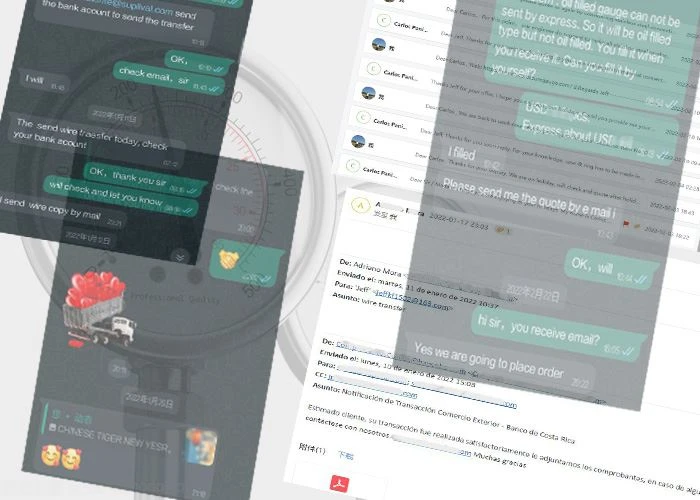

Communications:
More products:

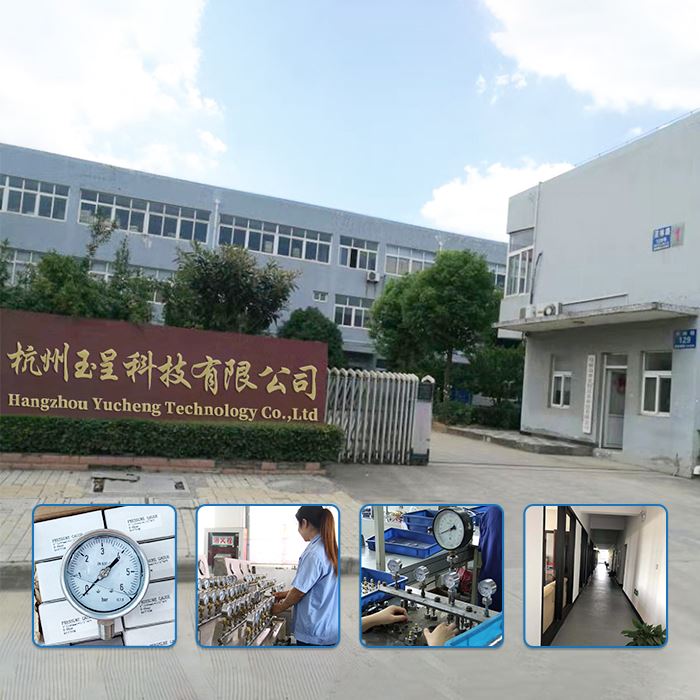

Production and Inspections:
Packing and shipping:
Hot Tags: electric contact pressure gauge meter, China, suppliers, manufacturers, factory, custom, wholesale, cheap
