Ss Bourdon Tube Standard Pressure Gauge
Bourdon tube pressure gauge
dial 4'' (100mm)
Accuracy: 1.6% ,
All stainless steel standard pressure gauge .
Factory price with good quality.
Description
Products Description
SS bourdon tube pressure gauge
Product Description
Structure
It consists of a pressure system (including connectors, spring tubes, flow limiting screws, etc.), a gear transmission mechanism, a reading device (pointer and dial), and an outer shell (including watch case, cover, glass, etc.). The outer shell is of an airtight structure, which can effectively protect the internal components from environmental impact and invasion of dirt. For instruments filled with liquid (usually silicone oil or glycerol) inside the casing, they can resist severe vibration in the working environment and reduce the pulsation effect of medium pressure.

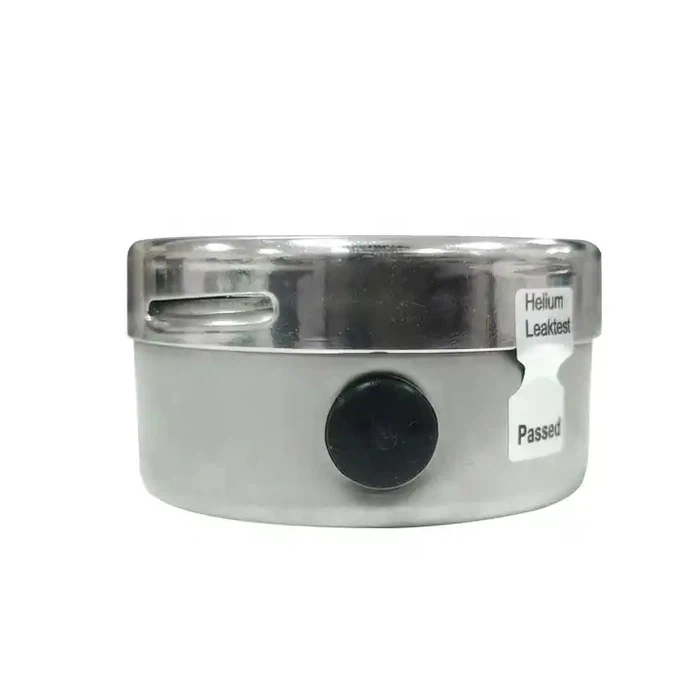

All stainless steel pressure gauge oil filled type
Oil filled type stainless steel pressure gauge
Applications
Application
Stainless steel pressure gauges are widely used in industrial sectors such as petroleum, chemical, chemical fiber, metallurgy, power plants, and other industries that require high corrosion resistance and vibration resistance to measure the pressure of various fluid media,
In many cases, pressure gauges need to work within the high-pressure range for a long time, and there is no problem with high-quality pressure gauges working under long-term pressure. 25Mpa is a commonly used range and is widely used.
The calculation method for the lifespan of a pressure gauge is different from most products, as it is not based on a few years of lifespan. The calculation of its lifespan is related to its structure. The core component of the pressure gauge is the Bourdon tube inside the gauge. When pressure enters, the Bourdon tube deforms, driving the pointer to change and displaying the pressure reading. The lifespan of a wave tube is calculated based on its number of deformations. For example, domestic tubes are usually 5000 to 10000 times, imported tubes are usually 100000 times, and German tubes can often be used for 200000 times. When the wave tube reaches the number of uses, it will not be restored after deformation, causing the pointer to not return to zero, or the wave tube to crack, etc. At this point, the lifespan of the pressure gauge is over.
Of course, if the pressure gauge and Bourdon tube work in a high pressure range for a long time, it will also reduce its deformation frequency, but the impact is not obvious, so there is no need to worry too much.
The most common situation of pressure gauge damage is instantaneous overpressure, such as a 25Mpa pressure gauge, which often reaches over 30Mpa when the unit is started. The pressure gauge is very prone to damage, often with one or several instances of damage.
|
bourdon tube all stainless steel standard pressure gauge |
|||
|
Product Name |
SS bourdon tube standard pressure gauge |
Operating temperature |
-20°C to +60°C |
|
Normal Size |
1"(25mm),1.5"(40mm),2"(50mm) |
Accuracy |
±1%,±1.6% |
|
Bourdon tube |
Copper alloy or Stainless steel,<100Bar: C-Type,≥100Bar: Helical Type |
Connection |
stainless steel/brass (customizable) |
|
Case |
Stainless steel |
Movement |
stainless steel/brass (customizable) |
|
Bezel |
Stainless steel |
Dial |
Aluminum |
|
Pressure Range |
-1Bar(-30"Hg)-01000Bar(15000Psi(customizable) |
Pointer |
Aluminum |
|
Thread |
1/8",1/4", 3/8",1/2";PT(BSPT,ZG),BSP(G,PF),NPT etc. |
Window |
Safety or Tempered Glass |
|
Liquid |
Glycerin or Silicone |
Gaskets Filling cap |
Nitrile or Silica gel |
|
range |
0.1/0.16/0.25/0.4/0.6/1.0/1.6/2.5/4.0/6.0/10/16/25/40/60/100Map |
||
Packing details
Single box per set
sticks on box
polyster bag inside
outside packing
About us
repeatability, and durability. Our testing procedures are designed to simulate real-world operating conditions, so that we can be confident that our products can withstand even the most challenging environments.
With clear dial scale, double scale ,different color scale .etc . Custom dial design is available. A variety of nozzle diameters can be selected
High quality beyonet Ring material and metalshell are adopted for reliable protection.
Production and Inspections
Client Communications
Product details check
Sample check
Payment check
Market share
| Market | Revenue(Previous Year) | Total Revenue (%) |
| North America | Confidential | 40 |
| South America | Confidential | 12 |
| Eastern Europe | Confidential | 3 |
| Southeast Asia | Confidential | 1 |
| Africa | Confidential | 5 |
| Oceania | Confidential | 1 |
| Mid East | Confidential | 2 |
| Eastern Asia | Confidential | 2 |
| Western Europe | Confidential | 3 |
| Central America | Confidential | 2 |
| Northern Europe | Confidential | 3 |
| Southern Europe | Confidential | 5 |
| South Asia | Confidential | 4 |
| Domestic Market | Confidential | 17 |
FAQ
Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, measuring range , accuracy, connection and other related parameters. so we can choose model and quote for you quickly.
Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments. OEM & ODM service are available. Welcome to visit us.
Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance. For mass production order, it is 30% deposit in advance and 70% balance before shipment.
Q: What is Trade Assurance payment method:
A: It's a free service which can protect your orders from payment to delivery. And we now have USD104,000.00 of caution money to assure your orders.
Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
