Oil Pressure Gauge Back Connection 1/4NPT
Accuracy 1.6%, 2.5%
all stainless steel or ss/brass connect pressure gauge
dry type or oil filled type
custom pressure gauge.
Description
Products Description
Oil Pressure Gauge Back Connection 1/4NPT
| Normal Size: |
2.5"(63mm), 4"(100mm), 6"(150mm). |
| Pressure Range: | -1Bar(-30"Hg)-0-1000Bar(15000Psi) |
| Accuracy: | ±1%,±1.6% |
| Operating temperature: | -20°C to +60°C |
| Case: | 304 Stainless steel |
| Bezel: | 304 Stainless steel |
| Bourdon tube: |
316 Stainless steel <70Bar: C-Type ≥70Bar: Helical Type |
| Connection: | 304/316 Stainless steel |
| Movement: |
316 Stainless steel |
| Dial: | Aluminum |
| Pointer: | Adjustable Aluminum |
| Window: | Tempered or Safety Glass |
| Thread: |
1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc. |
| Liquid: | Glycerin or Silicone |
| Gaskets Filling cap: | Nitrile or Silica gel |
Axial connect oil pressure gauge

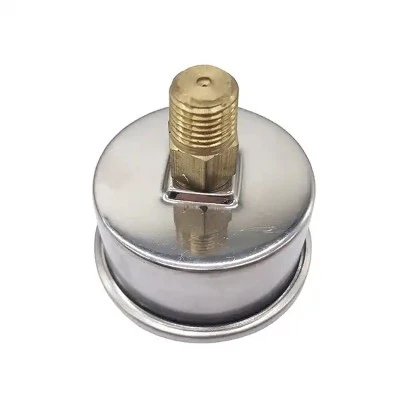

Back connect oil pressure gauge
Packing details
Single box per set
sticks on box
polyster bag inside
outside packing
