50mm Axial Installation Pneumatic Component Pressure Gauge
Pressure Gauges: Bottom or Center Back Mount;Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors,
Description
Product Description
| 50mm axial installation Pneumatic Component Pressure Gauge | |
| Accuracy | 2.5%, 1.6%, 1.0% |
| Ambient temperature | -40°C to +65°C |
| Process temperature | Max 100°C (Dry) |
| Operating pressure | 75% of the scale value |
| Over pressure limit | 25% of full scale value |
| Case | Painted steel |
| Ring | Painted steel |
| Bourdon tube | Phosphor Bronze |
| Socket | Brass |
| Movement | Phosphor Bronze |
| Standard scale | MPa, Kg/cm2, psi/kPa, bar...customized |
| Dial | Aluminum, black & red graduation on white background |
| Pointer | Aluminum, black |
| Window | sheet glass, PC |
| Liquid | Dry type |
| Connection | 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized) |
2 inch ferrum pressure gauge
2 inch black steel case pressure gauge
Pressure gauge refers to an instrument that uses elastic elements as sensitive elements to measure and indicate the pressure higher than the ambient pressure. It is widely used and almost covers all industrial processes and scientific research fields. It can be seen everywhere in fields such as heating pipe networks, oil and gas transmission, water and gas supply systems, and vehicle repair and maintenance shops. Especially in industrial process control and technical measurement processes, mechanical pressure gauges have been increasingly widely used due to their high mechanical strength and convenient production characteristics of elastic sensitive components.
The working principle of a pressure gauge is that the pressure gauge uses the elastic deformation of the sensitive components (Bourdon tube, bellows, bellows) inside the gauge, and then the pressure deformation is transmitted to the pointer by the conversion mechanism of the movement inside the gauge, causing the pointer to rotate to display the pressure.
The main structure of the pressure gauge is the overflow hole: In the event of an emergency situation where the Bourdon tube bursts, the internal pressure will be released to the outside through the overflow hole to prevent the glass panel from bursting.
Product introduction
Packing details
Single box per set
sticks on box
polyster bag inside
outside packing
About us
repeatability, and durability. Our testing procedures are designed to simulate real-world operating conditions, so that we can be confident that our products can withstand even the most challenging environments.
Custom dial design is available. clear dial scale, double scale is available,too
100% inspections to guarantee each new made product is qualified .

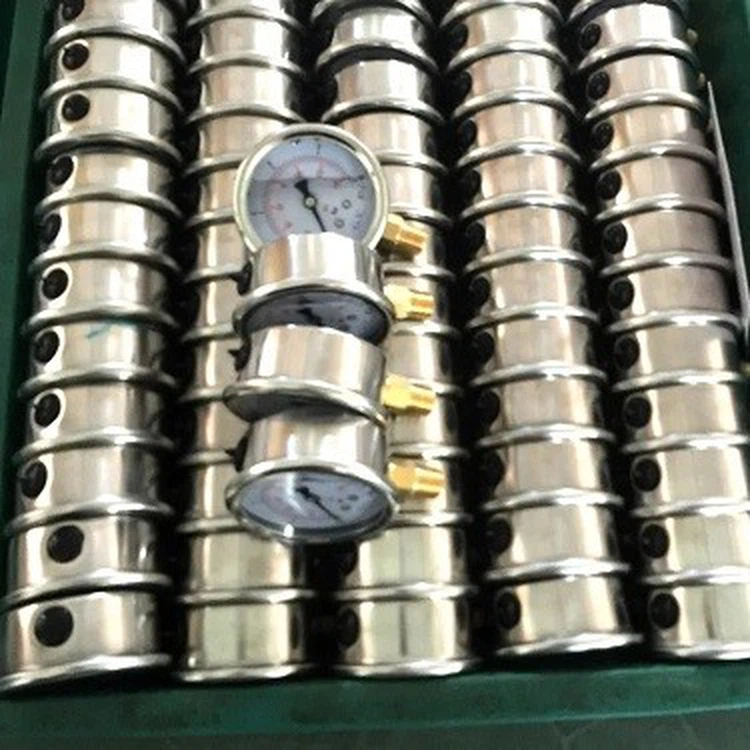

Production and Inspections
Hangzhou Yucheng Science and Technology is a professional manufacturer of all kinds of high quality gauges instruments.Our main product lines include dry gauge, liquid filled pressure gauge, special pressure gauge, capsule gauge, stainless steel liquid filled pressure gauge, thermometer, accessories..Our vision and strategy is to become the leading industrial instrumentation manufacturer for pressure gauge and temperature measurement. We will be distinct itself from competitors by offering a diversified and high quality product line, superior customer service, and a global distribution network.
Client Communications
Product details check
Sample check
Payment check
Market share
| Market | Revenue(Previous Year) | Total Revenue (%) |
| North America | Confidential | 40 |
| South America | Confidential | 12 |
| Eastern Europe | Confidential | 3 |
| Southeast Asia | Confidential | 1 |
| Africa | Confidential | 5 |
| Oceania | Confidential | 1 |
| Mid East | Confidential | 2 |
| Eastern Asia | Confidential | 2 |
| Western Europe | Confidential | 3 |
| Central America | Confidential | 2 |
| Northern Europe | Confidential | 3 |
| Southern Europe | Confidential | 5 |
| South Asia | Confidential | 4 |
| Domestic Market | Confidential | 17 |
