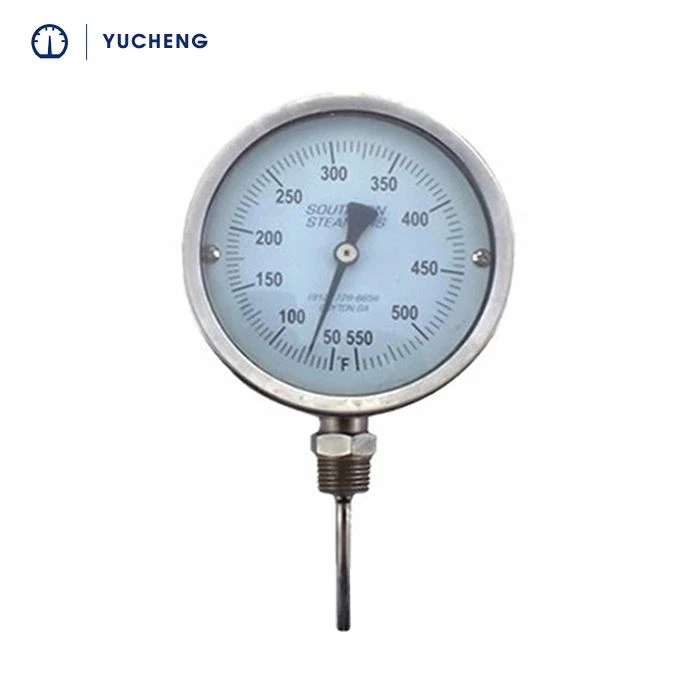

Bimetal Temperature Test Gauge
Product name: Bimetal thermometer
Normal size: 1"(25mm), 1.5"(40mm), 2"(50mm), 2.5"(63mm), 3"(75mm), 4"(100mm), 6"(150mm).
Operating temperature: -20°C to +60°C
Case: Stainless steel /black steel
Description
Bimetal temperature gauge
Packing &Delivery:
Packing: 1 unit per paper box.
Packing type: polyster bag +paper box, carton, pallet.
Carton weight:20-25kg
Lead time: 10-28 days
Port: Ningbo or Shanghai.
Warranty: 1 year
Product Description:
|
Dial |
2",2.5",3",4", 6" dish shaped dial, aluminum with black markings |
|
pointer |
Brass, painted black |
|
Case/Ring |
AISI 304 SS |
|
Welding |
TIG |
|
Lens |
Pc,hermetically sealed |
|
Maximum operating pressure |
125 psi (861 kPa) |
|
Stem |
AISI 316 SS Ø12mm, Ø6.35mm, Ø8mm, Ø10mm |
|
Operating Temperature |
maximum 75% of full scale value |
|
Connection |
1/2" NPT, centre back |
|
Ambient/Process Temperature |
Maximum 248°F (120°C) |
|
Movement |
Bi-metallic coil |
|
Enclosure Rating |
IP68 |
