The Remote Bimetal Temperature Gauge

The remote reading bimetal temperature gauge

The remote bimetal thermometer integrates thermocouple (resistance), bimetal thermometer or temperature transmitter, and it is widely used in metallurgy, petrochemical, electric power, textile, food, defense and other industrial sectors.The remote bimetal thermometer combines the remote transmission function of the thermal resistance or thermocouple with the on-site indication function of the bimetal thermometer. It can meet the requirements of on-site temperature measurement and meet the long-distance transmission requirements. It is used directly measure the temperature measurement of liquid, vapor and gaseous media and solid surfaces in the range of -40 to +600 °C in various production processes.

Our remote-reading thermometers are fitted with capillary of custom made lengths, ranging from 50 mm to 50.000 mm.

Our remote-reading thermometers are fitted with capillary of custom made lengths, ranging from 50 mm to 50.000 mm.
These thermometers provide a reliable and accurate reading of the process when a remote mesurement of temperature is necessary.

Available temperature ranges between -200°C up to +800°C.

Also available with contacts or microswitches.

Our remote-reading thermometers can also be manufactured in alternative cases such as square or rectangular glass-fiber reinforced Noryl cases.

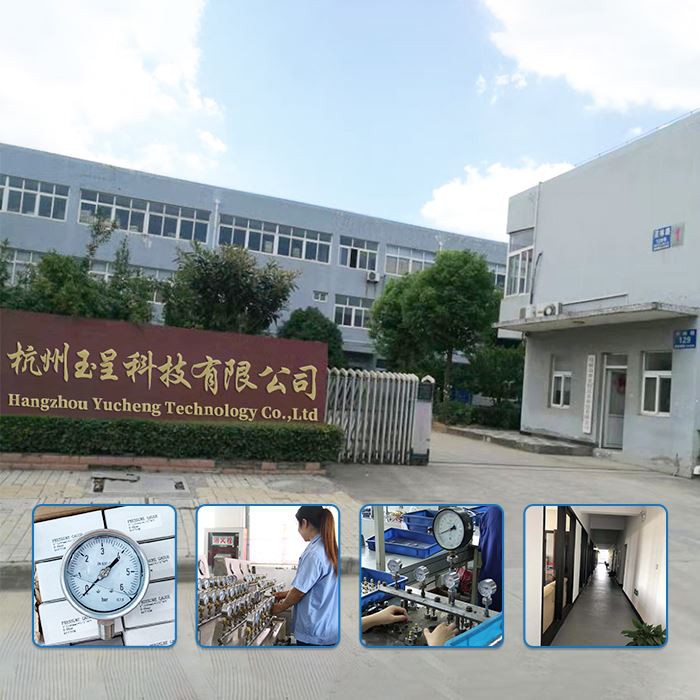

About us:

Description:
Nominal size (mm):
Ø(80, 100, 150)
Scale ranges:
-40+60 0C, 50-650 0C
Accuracy class: 1.6
Design: Capillary remote reading, stem with thread
Pressure rating, max in bar of thermowell/stem: 25
Wetted parts: Stainless steel
Connection: Lower or center back, surface or panel mount, 1/2″
Case material: Stainless steel case bayonet ring
Window: Glass

Certificates:

Communications:

production workshop and test of 4 inch size capillary thermometer below:

Packing and shipping:

Contact us:
