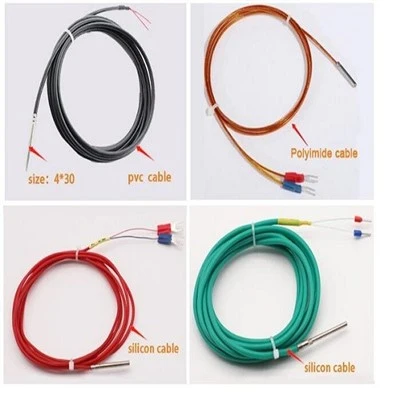

Flexible Sealed RTD Pt100 Temperature Sensor

Flexible Sealed RTD pt100 Temperature Sensor



The Pt100 (Rtd) Element is typically encased in Probe (metal tube) or other protective housing.

An RTD Temperature Sensor tends to have Higher Accuracy and Stability than other temperature sensors such as thermocouples or infrared, although typically has a slower response time to temperature changes.

Designs with an Exposed Pt100 (RTD) Element provide Faster Temperature Response.

A Pt100 RTD with a 3 Lead Wire Construction is one of the Most Utilized Design due to the ability to provide an excellent balance of accuracy, stability, ease of use and durability.

The Filter Search Tool on the ← Left of the page provides the opportunity to quickly select the RTD product details best suited for your application.



Temperature Operating range is -90 to 500°F (-70 to 260°C)

3-wire Pt100 (Platinum 100 Ohm) Class A temperature sensing element design encased in an aluminum fitting.

Surface Fitting is designed for fast temperature transfer with the mounting area being .065" thick (slightly more than 1/16" or 1.6 mm). The design is a left hand flag with a 5/16" (.312") long x 1/2" (.500") wide with a .114" mounting hole for a #4 Screw. The hole can be increased for larger screws and bolts.

Transition to Lead Wire is a high temperature epoxy to 40 inches (1 meter) of 500 F (260 C) PFA (Plastic Fluoropolymer) rated insulated wire

Wire Construction is 3 bare wire conductors made with 26 Gage Stranded (7 strands of 34 gage) nickel plated copper. Each of the 3 conductors are individually insulated with PFA, the 3 wire are twisted together and protected by a overall PFA jacket. The overall outside diameter is .072" (1.8 mm)

Color Code is 2 Black 1 Red on the internal wire with a White overall jacket and White connector.

Instrument Connection is 3-pin miniature male connector with a temperature range of -40 to 400°F (-40 to 200°C). The mating connector is part number RTD-FEMX-CON-FP-X-MPCT

The design provides accurate fast and secure surface temperature along with electrical interference immunity for applications in Medical, Alternate Energy, Semiconductor, Power Generation, Aerospace, Military and Defense, Power Electronics, Machine Builders for Plastics Processing, Industrial Automation and other industries.

Cusomized of K N J E T type temperature sensor thermocouple Type: K/J/PT100/PT1000/Cu50... Diameter and length of probe Material of probe Size of thread Material and length of lead wire
