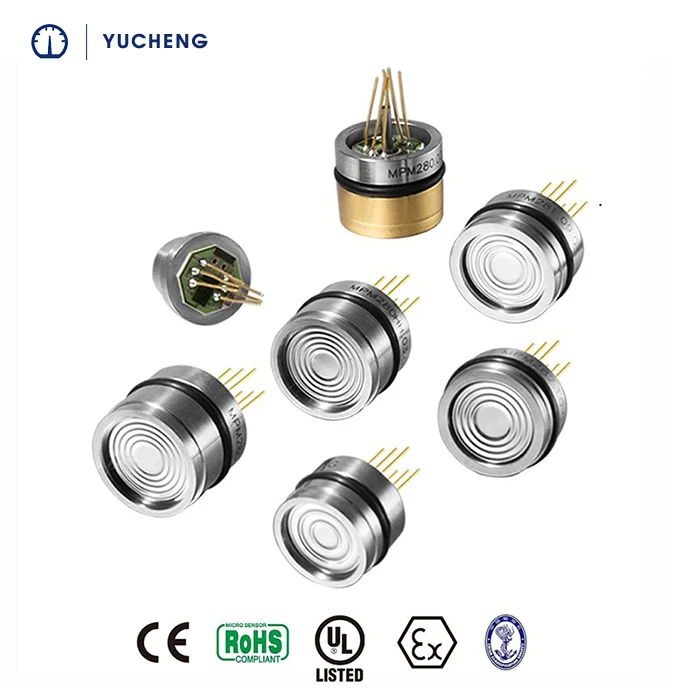

Accurate 19mm Small Size Pressure Sensor
Accurate 19mm Small Size pressure sensor
SemiConductor Type Diffused Silicon Pressure Transmitter,, Material: Stainless Steel,
Description
Accurate 19mm Small Size pressure sensor
Features:
1. Stainless steel SS316L
2.19mm diameter
3. OEM
4. Constant current, voltage power supply
5. ±0.1%FS/year stability
Applications:
1. Tank monitoring sensor
2. Level measurement;
3. Pressure calibrator;
4. Aviation and navigation inspection;
5. Industrial process control;
6. Pressure checking meter
Specification:
|
Item* |
Min. |
Typ. |
Max. |
Units |
|
Linearity |
|
±0.15 |
±0.20 |
%FS, BFSL |
|
Repeatability |
|
±0.05 |
±0.075 |
%FS |
|
Hysteresis |
|
±0.05 |
±0.075 |
%FS |
|
Zero output |
|
|
±2 |
MV DC |
|
FS output ** |
70 |
|
|
MV DC |
|
Zero thermal error*** |
|
±0.75 |
±1.0 |
%FS, @35ºC |
|
Span thermal error |
|
±0.75 |
±1.0 |
%FS, @35ºC |
|
Compensated temp. Range |
-10~80 0~70(7kPa, 20 kPa, 35 kPa) |
ºC |
||
|
Working temp. Range |
-40~125 |
ºC |
||
|
Storage temp. Range |
-40~125 |
ºC |
||
|
Stability error |
|
±0.1 |
±0.2 |
%FS/year |
|
*testing at basic condition ** for range code 0C, FS output ≥45mV ***for rang code 0C, Zero thermal error≤1.5%FS |
||||
About us:
Certificates:

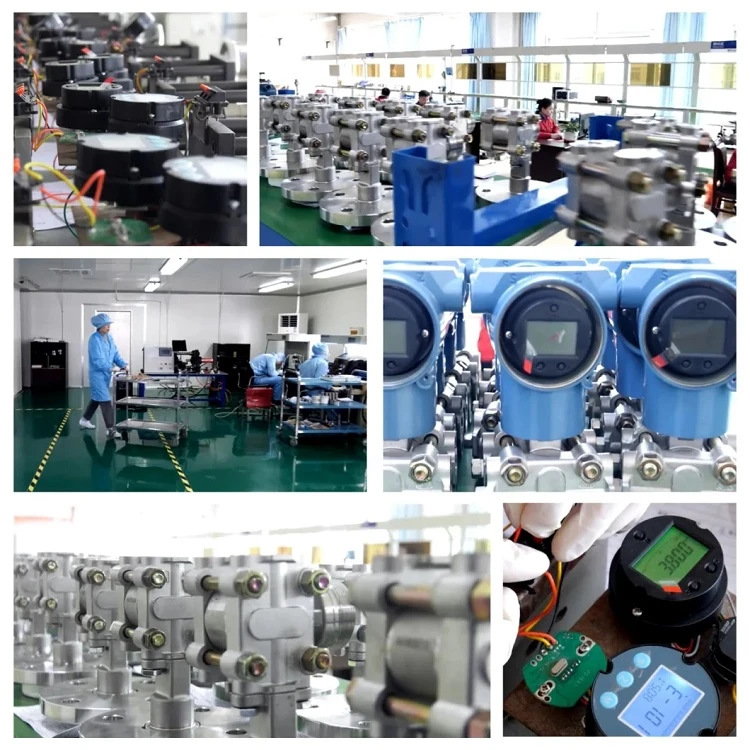

Production and inspections:
Devliery:
