Differential Pressure Transmitter 4-20mA With HART

Differential Pressure Transmitter 4-20mA with HART

Smart display,  100% display LCD with back lit  pressure valve.

Stability	0.15% of Url 2 Years	Accuracy	0.1% of Span
Power Supply	9-36VDC	Protocl	Hart
Process	1/4"NPT	Current Output	4-20mA 2 Wires
Application	Gas, Steam, Liquid	Production Capacity	1000PC/Month
HS Code	9026201090	Product Name	Dif Pressure Transmitter









 Product description
YC3051S series intelligent pressure transmitter is a well-developed high performance pressure transmitter of international leading technology adopting world advanced monocrystalline silicon pressure sensor technology and patented packaging technology. The product uses diaphragm with patented double overpressure protection design and internal circuit with anti-surge protection design. YC3051S can accurately measure gauge pressure, absolute pressure, flow, vacuum, liquid level and density.

Features:

• Advanced monocrystalline silicon differential pressure sensor adopted
• Wide range covering 0-0.2kPa~3MPa
• 2-wire system, 4 - 20mA analog output, HART protocol digital communication option
• Intelligent LCD with backlight
• Both remote transmission and local zero and span adjustment
• Complete varieties, high precision, good stability
• Flameproof shell structure, strong resistance to frequency conversion interference
• High static pressure, high overpressure protection
• Diaphragm with patented double overpressure protection design
• Lightning protection circuit design

About us:



Performance parameters:

Pressure range	-100kPa…0~0.2kPa…3MPa
Pressure reference	Gauge pressure, Absolute pressure, Differential pressure
Output & supply	4~20mA, 4~20mA+HART® (10.5V~36V, usually 24V)
Accuracy	±0.075%FS; ±0.1%FS(typ.); ±0.2%FS
Zero temp. coefficient	±0.25%FS/55ºC
Full scale span temperature impact	±0.5%FS/55ºC
Ambient temp.	-30ºC~80ºC; -30ºC~70ºC for LCD housing
Medium temp.	-40ºC~104ºC
Storage temp.	-40ºC~85ºC
Insulation resistance	≥100MΩ/500VDC(200MΩ/250VDC)
Protection	IP65
Ex-proof	Exd II BT6 Gb
Static pressure range	7MPa, 25MPa, 40MPa
Overpressure limit	16MPa
Long term stability	±0.2%FS/Year

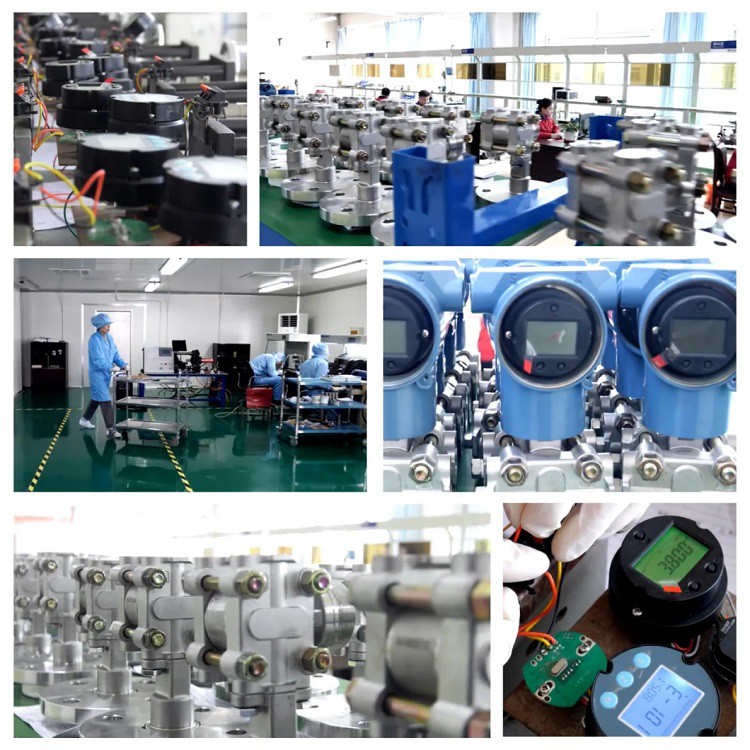

Production and Inspections:

Packing and shipping:



FAQ:

1.    Q: What is your production capacity?
        A: We produced 1500000 pieces pressure sensor in year 2017.

2.    Q: What is the lead time of your product?
        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
       Note: lead time may vary base on different products. Please contact us for detailed lead time.

3.    Q: What is the warranty of your products?
       A: Our warranty time is 18 months after shipment.

4.    Q: Do you provide customized products?
       A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
