IP65/IP68 Integrated Electro Magnetic Flow Meter
IP65/IP68 Integrated Electro Magnetic Flow Meter
Series nominal diameter DN3-DN3000.
Accuracy:0.3%Fs
Description
IP65/IP68 Integrated Electro Magnetic Flow Meter
 |
 |
- Measurements are not affected by changes in fluid density, viscosity, temperature, pressure and conductivity;
- Unobstructed flow components in the measuring tube, no pressure loss, low requirements for straight pipe sections;
- Series nominal diameter DN3-DN3000. There are many options for sensor liner and electrode materials;
- The converter adopts novel excitation mode, low power consumption, stable zero point and high precision. The flow range can be 1500:1;

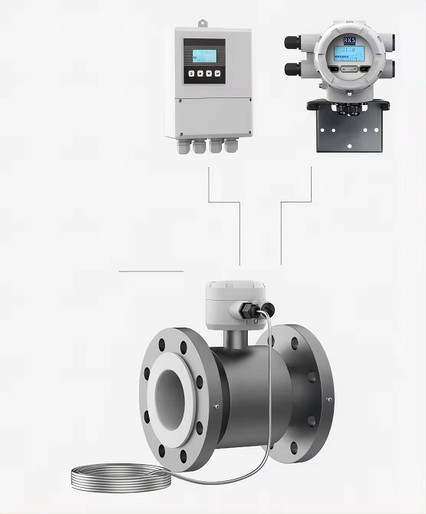

- The converter can be integrated or separated from the sensor;
- The converter adopts 16-bit high-performance microprocessor, 2X16LCD display, convenient parameter setting and reliable programming;
- Explosion-proof instruments can be used in corresponding explosion-proof places;
- The converter uses surface mount technology (SMT) with self-test and self-diagnosis functions;
product display

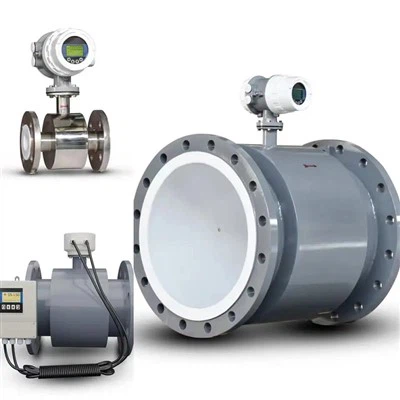

The flowmeter has the industry's widest range of liners, electrodes and sizes combined with standard diagnosis meet the needs of even the most demanding process applications.
The flowmeter provides the highest measuring accuracy & enhanced diagnosistics. Providing reliable flow measurement in sectors such as chemical, power, oil & gas, pulp & paper and metals & mining
Details display
Modular design,
Easy for after sale service
Lining material:
Chloroprene rubber (CR)
Silicone fluorocarbon (FVMQ)
polytetrafluoroethylene(PTFE)
etc
body and flange
carbon steel
ss304
ss316 optional
Electrode:
316L
Hastelloy b (HB)
hastelloy C (HC)
Titanium (Ti)
etc
|
Name
|
Electromagnetic Flowmeter
|
|||
|
Model
|
YPT124B-505
|
|||
|
Nominal diameter
|
3-3000mm
|
|||
|
Velocity range
|
0-10m/s
|
|||
|
Accuracy
|
±0.5%R, ±1%R ( < DN20)
|
|||
|
Medium conductivity
|
≥5µS/cm, Actual conductivity≥30µS/cm
|
|||
|
Nominal pressure
|
1.0MPa
|
1.6MPa
|
2.5MPa
|
4.0MPa
|
|
DN15-DN800
|
DN15-DN800
|
DN15-DN600
|
DN15-DN50
|
|
|
Environment temperature
|
Sensor
|
0℃- +80℃ or -25℃- +120℃ or +70℃- +250℃
|
||
|
Incorporate type
|
-10℃- +55℃
|
|||
|
temperature |
Incorporate type
|
+80℃
|
||
|
|
CR chloroprene rubber liner (CR)
|
+80℃
|
||
|
Polytetrafluoroethylene lining (F4)
|
+120℃
|
|||
|
Polite lining (F46)
|
+120℃
|
|||
|
Teflon (PFA)
|
+180℃
|
|||
|
Fluorosilicone rubber (FVMQ)
|
+250℃
|
|||
|
Output signal
|
4-20mA, Pulse/Frequency 2kHz(Default), 5KHz(Max)
|
|||
|
Cable entry size
|
M20*1.5 (Standard nylon waterproof connector, optional explosion-proof metal connector)
|
|||
|
Supply voltage
|
110/220VAC (100-240VAC), 50Hz/60Hz; 24VDC±10%
|
|||
|
Power dissipation
|
≤15VA
|
|||
|
Digital communication
|
RS-485, support standard Mudbus protocol; GPRS
|
|||
|
Signal /Ground
electrode material |
Stainless steel 316L, Hastelloy C, Hastelloy B, titanium, tantalum, platinum
|
|||
|
Form of electric pole
|
Interpolating, extrapolating electrode need to customize
|
|||
|
Number of electrodes
|
Standard configuration 3-4 electrodes(two measuring electrodes plus a grounding electrode),according to the caliber configuration
|
|||
|
Flange standard
|
Conform to the international GB9119(customize according to customer's demand)
|
|||
|
Flange material
|
Standard carbon steel and stainless steel are needed to be customized
|
|||
|
|
Stainless steel, and stainless steel that contains molybdenum, etc
|
|||
|
DN12-DN450
|
Stainless steel 1 Cr18Ni9Ti(Ordinary austenitic stainless steel SUS321)
|
|||
|
Housing material
|
Standard carbon steel and stainless steel are needed to be customized
|
|||
|
|
Separate body-type
|
IP68, IP65
|
||
|
Incorporate type
|
IP65
|
|||
|
Interval/wire length (separate body-style)
|
10m standard configuration connecting line, optional 15m, 20m, 25m, 30m
|
|||
Accept OEM customization, Multi-language Flow meter customization.
Electromagnetic flow meter have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as:Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc
Our Company

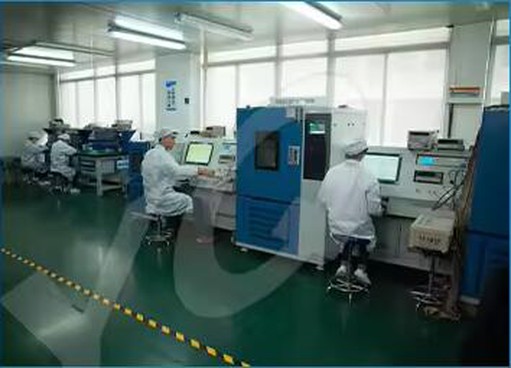

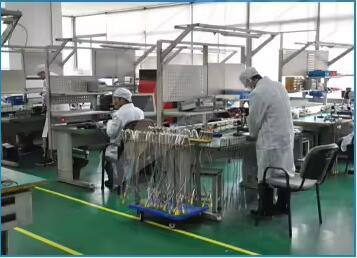

production line and inspections , packings
Transmitter can be commanded to supply a specified test current between 4.0 and 20.0 mA.
|
Transmitter can be commanded to supply a specified test frequency between 0.1 and 5000 Hz |
24Vdc pull up open collector or galvanically isolated open collector (opt.)
Adjustable between 0.0 and 9.9%Qmax. Below selected value, output is driven to the zero flow rate signal level.
|
0-100% RH to 150 °F (65 °C), not condensing. |
Adjustable between 0.1 and 99 seconds.
 |
 |
| FLOW RANGE : | |||
| Diameter(mm) | Flow range(m3/h) | ||
| Lower limit flow range (m³/h) | Recommend flow range (m³/h) | Upper flow range (m³/h) | |
| 10 | 0.028~0.25 | 0.14-1.4 | 1.4-2.8 |
| 15 | 0.064~0.6 | 0.3-3.0 | 3-6 |
| 20 | 0.13~1.13 | 0.5-5.0 | 5-11 |
| 25 | 0.176~1.6 | 0.8-8.0 | 8-17 |
| 32 | 0.2895~2.5 | 1.4-14 | 14-29 |
| 40 | 0.4524~4.0 | 2-20 | 20-45 |
| 50 | 0.707~6.0 | 3.5-35 | 35-70 |
| 65 | 1.195~10 | 6-60 | 60-120 |
| 80 | 1.81~16 | 9-90 | 90-180 |
| 100 | 2.83~25 | 14-140 | 140-280 |
| 125 | 4.42~40 | 22-220 | 220-440 |
| 150 | 6.36~60 | 32-320 | 320-630 |
| 200 | 11.3~100 | 56-560 | 560-1130 |
| 250 | 17.7~160 | 88-880 | 880-1700 |
| 300 | 25.45~250 | 127-1270 | 1270-2500 |
| 350 | 34.6~300 | 173-1730 | 1730-3500 |
| 400 | 45.2~400 | 226-2260 | 2260-4500 |
| 450 | 57.3~500 | 286-2860 | 2860-5700 |
| 500 | 70.7~600 | 350-3500 | 3500-7000 |
| 600 | 102~800 | 1000~4000 | 4000-10100 |
| 700 | 139~1200 | 500-5000 | 5000-14000 |
| 800 | 181~1600 | 900 9000 | 9000-18000 |
| 900 | 229~1600 | 1145~11450 | 11450-23000 |
| 1000 | 283~2000 | 1410-14100 | 14100-28000 |
