Sanitary Diaphragm Seal Pressure Gauge
Sanitary Diaphragm seal pressure gauge
The clamp type pressure gauge is a system diaphragm pressure gauge composed of a stainless steel pressure gauge and a diaphragm isolator, and has the advantages of quick and convenient disassembly and assembly at the process site, not easy to be polluted, easy to clean, safe and reliable.
Description
Sanitary Diaphragm Pressure Gauge
Packing& Delivery:
Packing: 1 unit per paper box.
Packing type: Polyster bag +paper box, carton. pallet.
Carton size: 31x31x34cm
Carton Weight: 20-24kg
Lead time: 7-25days
Port: Ningbo or Shanghai
Guarantee: 1 year

Product Descriptions:
|
Model |
sanitary diaphragm seal pressure gauge |
|
Pressure Range |
0~10bar/0~1MPa |
|
Head diameter |
(60mm, 100mm) |
|
Scale unit |
MPa (black)/ bar (blue) |
|
Accuracy |
1.6%f.s |
|
Shell material |
Stainless steel SUS304, SUS316 |
|
Elastic element material |
Stainless steel SUS316 |
|
Transmission element material |
Stainless steel SUS304 |
|
Dial material |
Aluminum (white porcelain background) |
|
Pointer material |
aluminum (black electrophoresis) |
|
Structure style |
Edge sealing |
|
Filling liquid |
Silicone oil |
|
Diaphragm style |
Clamp type |
|
Diaphragm material |
Stainless steel SUS304 chuck |
|
Diaphragm plate material |
Stainless steel SUS316 |
|
Clamp material |
Stainless steel SUS304 |
|
Diaphragm sealing ring material |
Silicone |
|
Installation method |
Radial installation |
|
Connection interface |
1.5" clamp connection |

About us:


More products:

Certificates:
Communications:
![]() |
![]() |

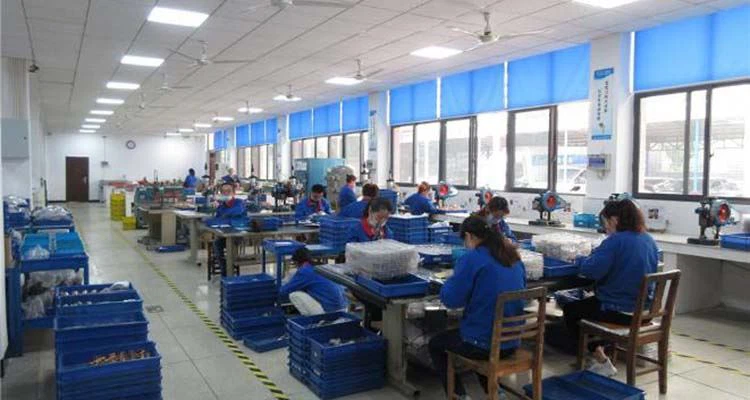

Production and Inspections:
