DN15-DN200 Intelligent Gas Precession Vortex Flowmeter
Steam / gas flow range:80-800m3/H
body material: 304 stainless steel
working power: 24VDC or 12VDC
Measuring range:Gas: 7m/s~40m/s; liquid: 0.7m/s~7m/s.
Description

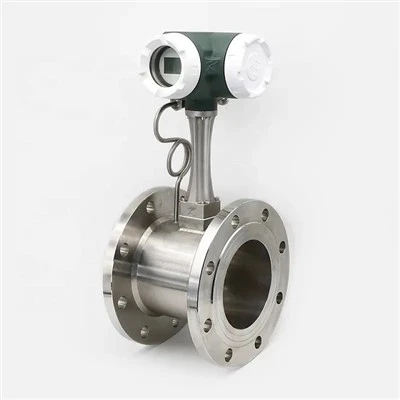

DN15-DN200 Intelligent Gas Precession Vortex Flowmeter
Products Description
- The precession vortex flowmeter adopts the latest micro-processing technology, which has the advantages of strong
function, wide flow range, simple operation and maintenance, and convenient installation and use. The main
technical indicators have reached the advanced level of similar foreign products. Widely used in various gas
measurement in petroleum, chemical, electric power, metallurgical coal and other industries -
Features
1.16-bit computer chip, high integration, small size,good performance, strong machine function;
2.Intelligent flowmeter integrates flow probe,microprocessor, pressure and temperature sensor into one.
3.The whole machine has low power consumption and can be powered by the built-in battery or an external power supply.4.No mechanical moving parts, not easy to corrode,stable and reliable, long life, no special maintenance required for long-term operation;

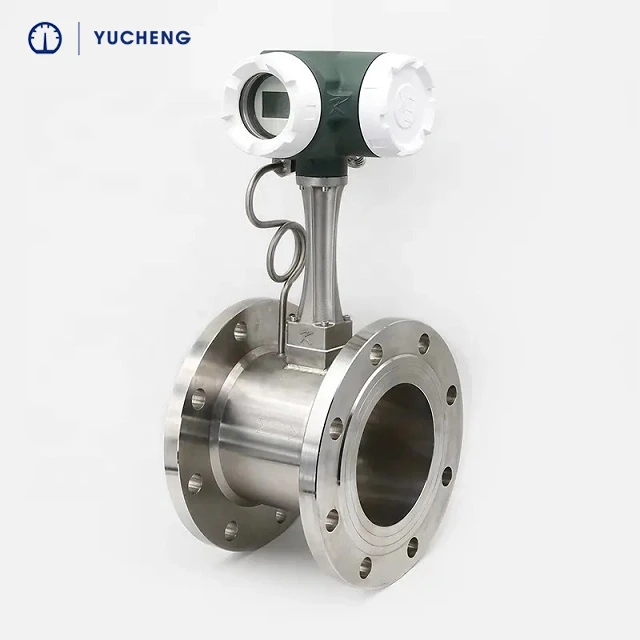

Vortex flow meter
ss304 Vortex flow meter
Parameters
|
Applicable medium |
Gases(air, oxygen,nitrogen, gas, natural gas, chemical gases, etc.) Liquids(water, high temperature water, oil, food liquid,chemical liquid, etc.) Steam(saturated steam, superheated steam.) |
|
Nominal diameter(mm) |
DN15~DN300, (300~1000 Insert type) |
|
Range of |
1:6~1: 30 |
|
Medium temperature |
-40℃~280℃,-40℃-350℃ |
|
Nominal pressure(MPa) |
≤1.6MPa ≤2.5MPa ≤4Mpa |
|
Accuracy |
Liquids 1.0%, Gases and Steam 1.5% |
|
Flow rate range |
Liquids:0.27-9m/s,Gases:3-80m/s,Steam:3-90m/s |
|
Output signal |
Square wave pulse ( not including the battery powersupply type ): high level or low level5V,1V |
|
Current |
4~20mA,RS485 communication |
|
Power supply voltage |
3.6V Battery ,+12V DC,+24v Dc |
|
Body material |
1Cr18Ni9Ti,(Other materials supply agreement) |
|
Explosion proof marks |
Intrinsic safety type: Exd IA CT2-T5 flameproof |
|
type |
Exd CT2-T5 |
|
Display |
LCD |
|
Protection grade |
The ordinary lP65. |
Single box per set
sticks on box
polyster bag inside
outside packing
Details of this Rota Meter flowmeter
RS485/RS232
Analog output 4-20mA
pulse output
Intelligent meter head adopts high-performance intelligent microprocessor and analog-to-digital ,digital-to analog conversion chip.
The flange standard complies with GB/9119-2000. material: carbon steel/304 ss /316ss . connected by thead /flange /clamp.
Production and Inspections
Structure
Descriptions
Client Communications
Product details check
Sample check
Payment check
Market share
| Market | Revenue(Previous Year) | Total Revenue (%) |
| North America | Confidential | 40 |
| South America | Confidential | 12 |
| Eastern Europe | Confidential | 3 |
| Southeast Asia | Confidential | 1 |
| Africa | Confidential | 5 |
| Oceania | Confidential | 1 |
| Mid East | Confidential | 2 |
| Eastern Asia | Confidential | 2 |
| Western Europe | Confidential | 3 |
| Central America | Confidential | 2 |
| Northern Europe | Confidential | 3 |
| Southern Europe | Confidential | 5 |
| South Asia | Confidential | 4 |
| Domestic Market | Confidential | 17 |
installation
Flowmeter installation:
1.When installing the flowmeter, it is strictly forbidden to conduct electric welding directly at the inlet and outlet flanges to avoid burning the internal parts of the flowmeter.
2.The newly installed or overhauled pipeline must be cleaned, and the flowmeter can be installed after removing the debris in the pipeline.
3.The flowmeter should be installed in a place that is convenient for maintenance, without strong electromagnetic field interference, strong mechanical vibration and thermal radiation.
4.Flow meters should not be used in occasions where the flow is frequently interrupted and there is a strong pulsating flow or pressure pulsation.
