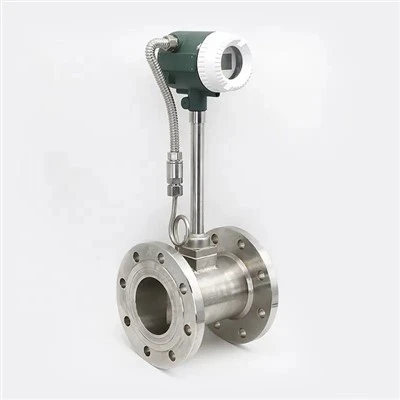

Insert Digital Vortex Flow Meter Air Steam Flowmeter
measuring precision : liquid: 1.0; gas:1.5;
body material: 304 stainless steel
working power: 24VDC or 12VDC
Measuring range:Gas: 7m/s~40m/s; liquid: 0.7m/s~7m/s.
Description
Products Description
insert digital vortex flow meter air steam flowmeter
- insert digital vortex flow meter air steam flowmeter is a volumetric flowmeter that measures the volumetric flow of gas, steam or liquid, volumetric flow or mass flow according to the Karman v ortex principle. And can be used as a flow transmitter in the automated control system v ortex flowmeter.The instrument uses advanced differential technology, with isolation, shielding, filtering and other measures to overcome the similar products, poor shock resistance, small signal data disorder and other issues, and the use of a unique sensor packaging technology and protective measures to ensure product reliability The Products are basic and complex two types, the basic measurement of a single flow signal; composite can simultaneously achieve temperature, pressure, flow measurement. Each type has a whole, split structure to accommodate different installation environments.
-
Features
1.With a sophisticated low-power LCD display, the local display shows instantaneous flow, cumulative flow, frequency, pressure, temperature, density, current, percentage etc .
2.Probe used four piezoelectric ceramic technologies to effectively eliminate the influence of external vibration on the measurement.3.No moving parts, no wear, no mechanical maintenance and long service life.4.The probe and signal converter are universally interchangeable.5.Split type signal converter can be used, the cable can be up to 10 meters long.6.Output 4-20mA current signal / pulse signal, or Modbus RS485 signal.7.Two types of intrinsic safety explosion-proof: Exia II CT6Ga; flameproof: Exd II CT6Gb.8.With HART–Protocol communication protocol, Modbus RS485 interface.
Vortex flow meter
digital Vortex flow meter
Parameters
|
Nominal pass(mm)
|
15,20,25,40,50,65,80,100,125,150,200,250,300
|
|||
|
Instrument material
|
1Cr18Ni9Ti
|
|||
|
Nominal pressure (Mpa)
|
PN1.6Mpa;PN2.5Mpa;PN4.0Mp
|
|||
|
Measured medium temperature(℃)
|
-40~+250℃;-40~+350℃
|
|||
|
Environmental conditions
|
Temperature -10 ~ +55 ℃, relative humidity of 5% to 90%, atmospheric pressure 86 ~ 106Kpa
|
|||
|
Accuracy
|
Liquid: ± 0.5 for indication; gas or steam: ± 1.0,± 1.5for indication
|
|||
|
Range ratio
|
1:10;1:15
|
|||
|
Resistance loss factor
|
Cd<2.6
|
|||
|
Output signal
|
Optional 4-20mA or pulse
|
|||
|
Power supply
|
Sensors: + 12VDC, + 24VDC (optional)
|
|||
|
Transmitter: + 24VDC
|
||||
|
Live display type: instrument comes with 3.2V lithium battery
|
||||
|
Signal transmission line
|
STVPV3 × 0.3 (three-wire), 2 × 0.3 (two-wire)
|
|||
|
Installation method
|
Flange clamp or integral flange connection
|
|||
|
Transmission distance
|
≤500m
|
|||
|
Signal line interface
|
Internal thread M20 × 1.5
|
|||
|
Explosion protection rating
|
ExdIIBT6
|
|||
|
Protection class
|
IP65
|
|||
|
Allow vibration acceleration
|
1.0g
|
|||
Packing details
Single box per set
sticks on box
polyster bag inside
outside packing
Details of this Rota Meter flowmeter
Fully intelligent and digital circuit design, which can automatically compensate the density of the measured fluid or volume calculation under standard conditions.
Multi process processing, high temperature resistance, good conductivity and accurate measurement .
Stress type vortex flowmeter is a kind of speed flowmeter, it is based on the karman vortex theory.
Production and Inspections
working principle
High precision, durable, low cost.
Client Communications
Product details check
Sample check
Payment check
Market share
| Market | Revenue(Previous Year) | Total Revenue (%) |
| North America | Confidential | 40 |
| South America | Confidential | 12 |
| Eastern Europe | Confidential | 3 |
| Southeast Asia | Confidential | 1 |
| Africa | Confidential | 5 |
| Oceania | Confidential | 1 |
| Mid East | Confidential | 2 |
| Eastern Asia | Confidential | 2 |
| Western Europe | Confidential | 3 |
| Central America | Confidential | 2 |
| Northern Europe | Confidential | 3 |
| Southern Europe | Confidential | 5 |
| South Asia | Confidential | 4 |
| Domestic Market | Confidential | 17 |
FAQ
1.Q:How to intallation flowmeter ?
A:We can provide manual of flowmeter ,kindly contacts us freely.
2.Q:How can I choose this flow diameter ?
A:Yes.that's according to your pipe diameter and flow range.
3.Q:Could i get samples?
A:Yes,We have materials in stock to help you to get the samples as sooon as we can.
4.Q::Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
5.Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
6.Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
7.Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and arrange to produce
immediately.
